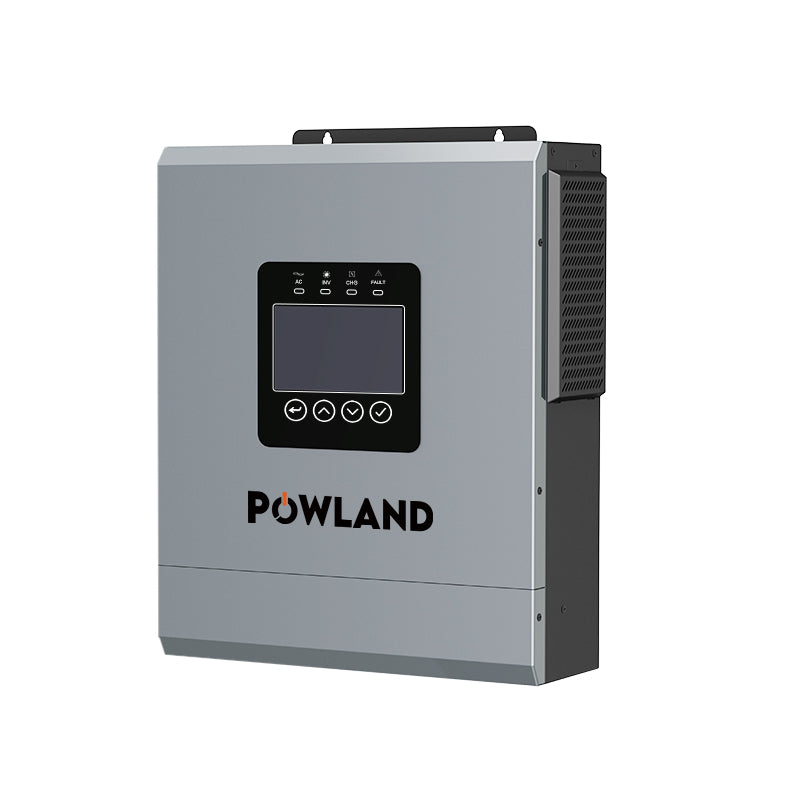

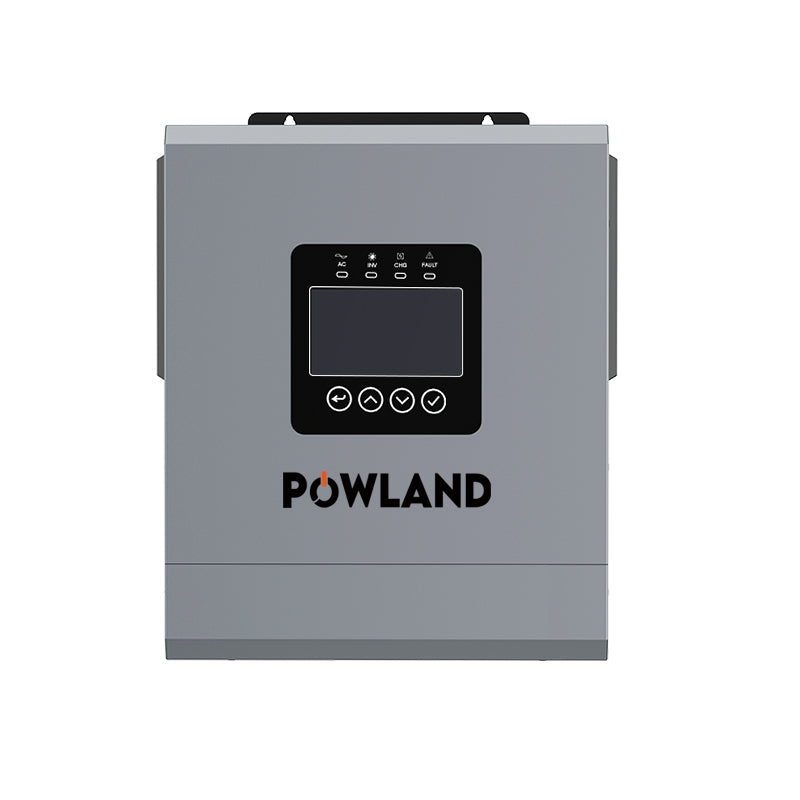

POWLAND Hybrid Solar Inverter 6.5kW 48V Pure Sine Wave MPPT WiFi
High Power Output with Surge Capacity
High Power Output with Surge Capacity
Delivers 6.5kW continuous rated power with a 12kW surge capacity, reliably starting high-demand appliances like refrigerators, air conditioners, and power tools without overloading.
Flexible Operation – Works Without a Battery
Flexible Operation – Works Without a Battery
The inverter can operate without a battery, allowing direct solar-to-load power during the day, reducing battery wear and lowering system costs.
Specification
Specification
AC Input
| Rated Input Voltage (VAC) | 208/220/230/240;L+N+PE |
| Voltage Range (VAC) | 90~280 (APP/GEN mode);170~264 (UPS mode) |
| Frequency (Hz) | 50/60 (Auto Adaptive) |
AC Output
| Rated Capacity (kVA/kW) | 6.5 (Output Power rating will be reduced to 90%, when setting the Output voltage to 208V) |
| Surge Power (kVA) | 12 |
| Voltage (VAC) | 208/220/230/240 |
| Power Factor (PF) | 1 |
| Frequency (Hz)） | 50/60+0.1% |
| Switch Time (ms) | 10 (APP/UPS mode) /20 (GEN mode) |
| WaveForm | Pure SineWave |
| Overload Capacity (Battery Mode) | 1min@ 102%~110%load 10s@>110% load |
| Max.Efficiency (Battery Mode) | 94%@48V |
Charger(PV/AC)
| Solar Charger Type | MPPT |
| Max PV Input Current/Power | 27A/9000W |
| MPPT Range@Operating Voltage (VDC) | 60-450 |
| PV Start-up Voltage (VDC) | 80 |
| Max PV Open Circuit Voltage (VDC) | 500 |
| Max PV Charge Current (A) | 120 |
| Max AC Charge Current (A) | 120 |
| Max. Charge Current (PV+AC) (A) |
120 |
Battery
| Normal Voltage (VDC) | 48 |
| Battery Type | Lithiumand Lead－acid |
🔒 Secure Checkout: Your payment information is encrypted and processed securely. We do not store credit card details nor have access to your credit card information.
6500W Hybrid Solar Inverter 48V Pure Sine Wave Dual AC Output MPPT WIFI Support BMS
600kW rated power with unity power factor (PF=1) — delivers full real power with no reactive penalties.
Built for factories, large farms, commercial buildings, and community microgrids.
The backbone for demanding operations.
（Grid feed-in requires local certifications and is not currently supported. We will notify you when this feature becomes available.）

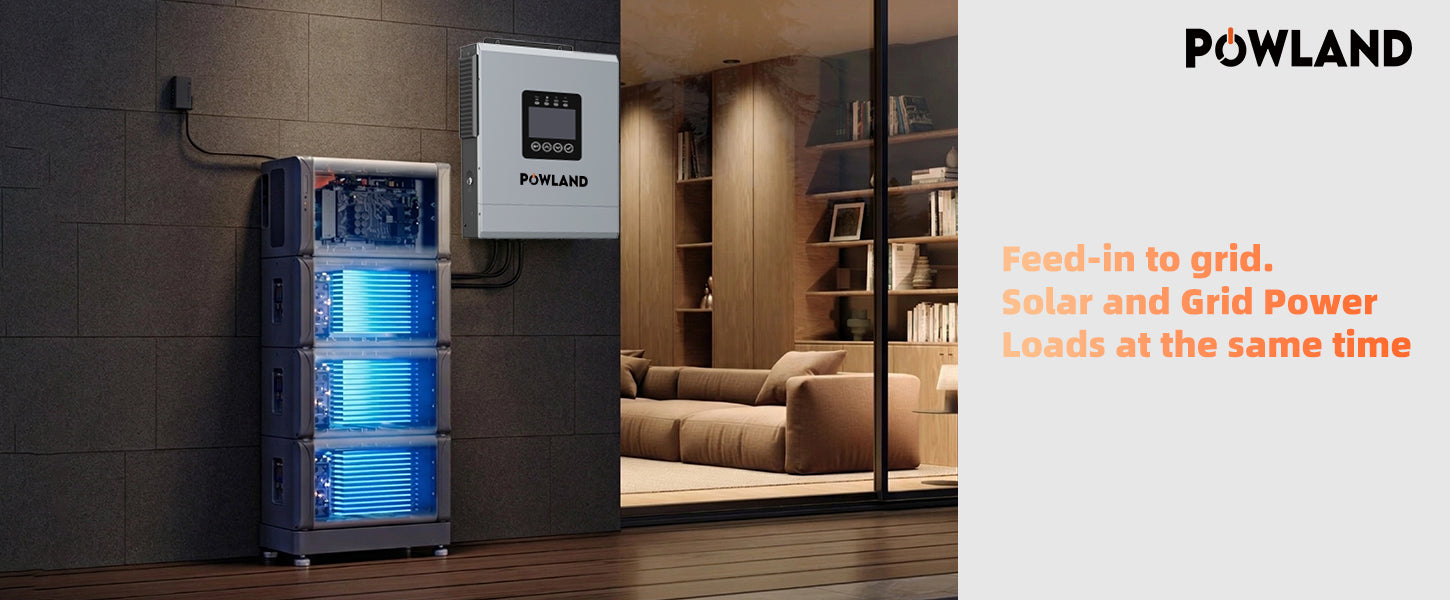

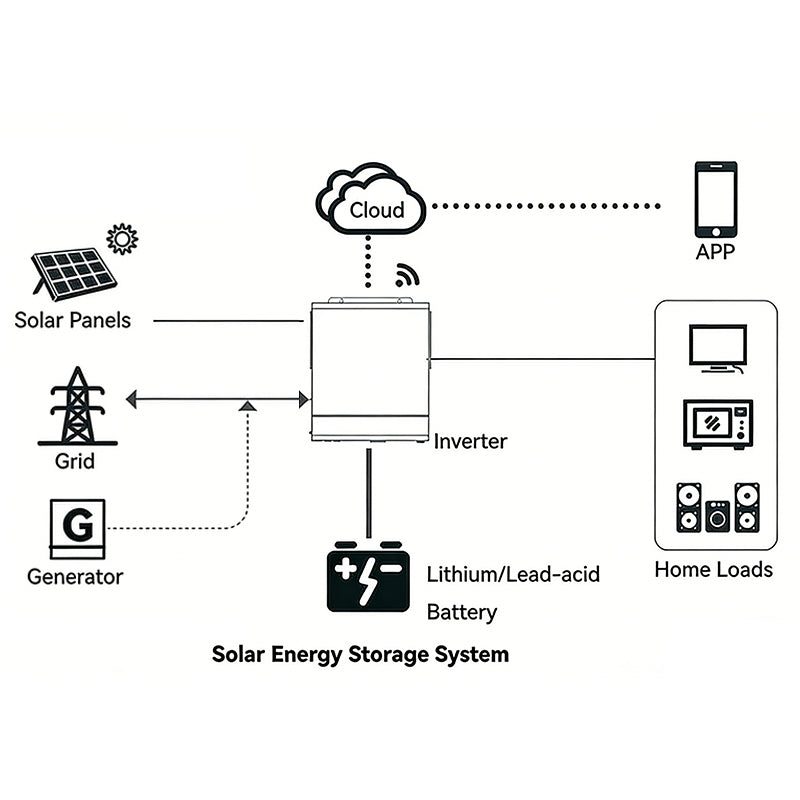

Synergy of Both Features – Maximum Value from Your Solar Investment
Solar powers loads first, then charges batteries, then exports surplus to the grid for revenue.
At night, the grid takes over seamlessly. Every photon delivers value.
CAN/RS485 for BMS Communication – Real-Time Monitoring and Diagnostics
CAN/RS485 BMS communication turns your inverter into an intelligent energy management system.
Continuous two-way communication with your battery delivers: (1) protection against overcharge and overheating; (2) extended battery life through precision charging; (3) compatibility with any battery type; (4) real-time battery monitoring; and (5) safety compliance. Not an option — an essential investment.

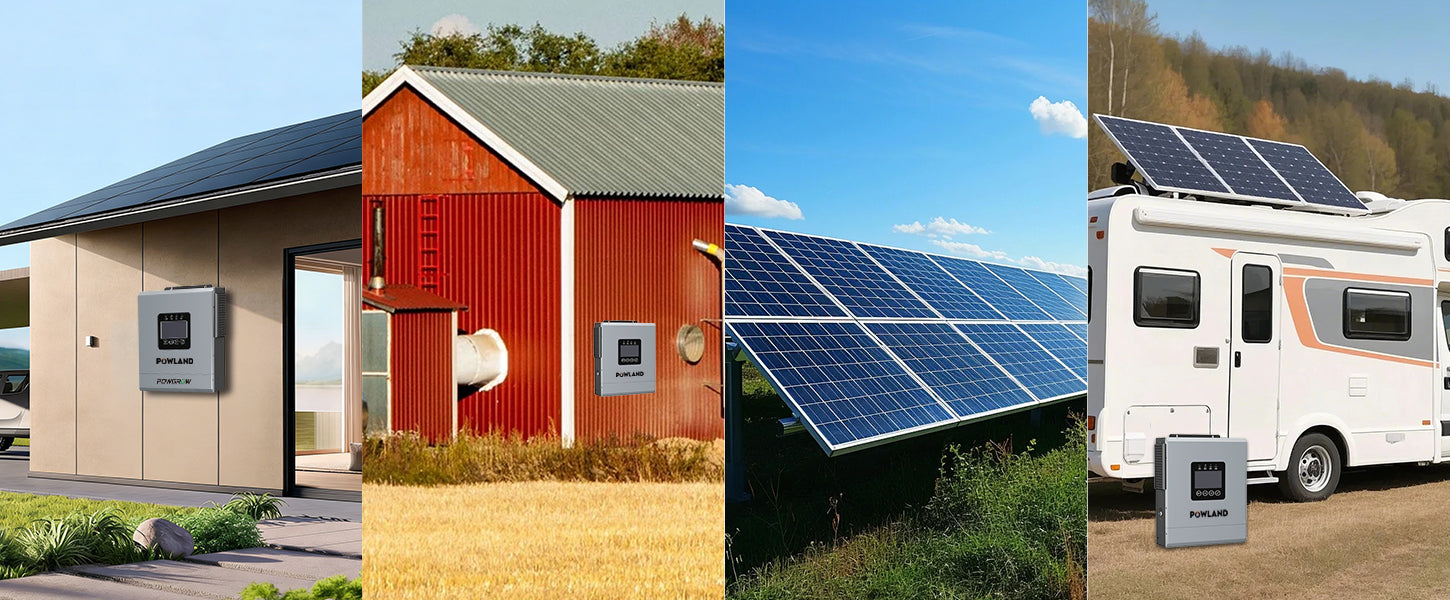

Engineered for Seamless Integration – One Inverter for Every Situation
Not built for one purpose or place — engineered for all.
Home, solar field, or camper van — seamless integration anywhere.
Built to Perform Reliably in Both Extreme Cold and High Heat – Uncompromising Durability
Built for extremes. Operates from -10°C to 60°C.
Freezing winters or scorching summers — power stays consistent.
Tested for harsh conditions. When weather turns brutal, your power stays on.

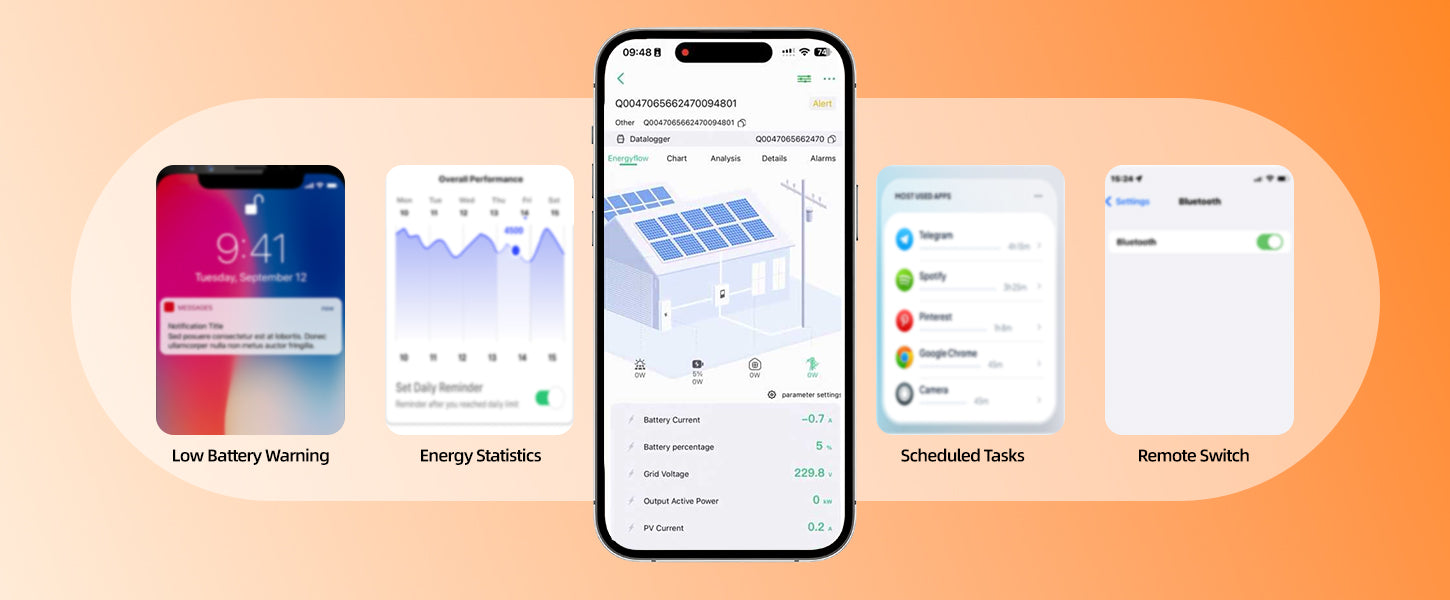

Wi-Fi Connectivity for Real-Time Remote Monitoring – Total Control from Your Smartphone
Built-in Wi-Fi and mobile app — monitor your system from anywhere.
At work, on vacation, or just indoors — instant status at your fingertips.

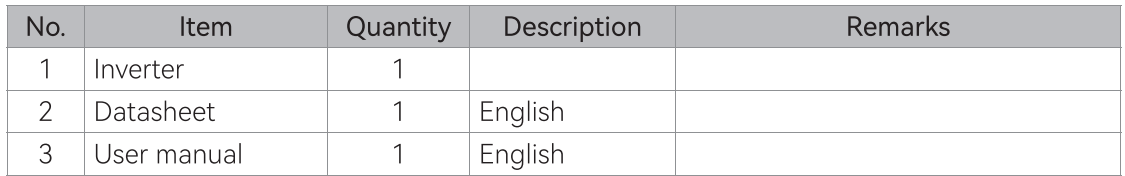

Package includes
Choose the One That Fits Your Needs
From essential backup to high-demand applications, we have the right inverter for you. Choose based on your energy needs, system voltage, and budget—and power with confidence.
|
|
|
|
|
|
|
|
|
|
6.5kW / 48V System |
12.0kW (Split phase)/7.2kW (Single phase)/48V System |
4.0kW / 24V System |
6.5kW / 48V System |
10.0kW / 48V System |
3.6kW / 24V System |
12kW / 48V System |
|
|
12kVA |
24kVA(Heavy Duty ) |
8.0kW (Up to 5 sec) |
12kVA |
10.0kW |
7.2kVA |
24kVA (Heavy Duty) |
|
|
9000W |
12000W(6000W + 6000W Dual MPPT) |
5600W |
9000W(4500W + 4500W Dual MPPT) |
9000W |
5000W |
15000W (Dual MPPT) |
|
|
120A (PV+AC) |
160A AC / 220A PV(220A Ultra-Fast Hybrid） |
110A AC / 140A PV |
120A AC / 150A PV (150A Max Hybrid) |
250A Max PV |
100A (PV+AC) |
160A (Ultra-Fast) |
|
|
Dual AC Output |
240Vac (L1/L2 Split Phase) |
120Vac ± 5% |
120Vac |
120V/240V Split Phase |
Dual AC Output (Optional) |
Dual AC Output |
What Our Customers Say
Frequently Asked Questions
User Manual
User Manual
1. What appliances can this inverter run?
1. What appliances can this inverter run?
It can run most household appliances, power tools, and motor-driven devices up to 6.5kW continuous power (12kW surge).
2. Can this inverter work without batteries?
2. Can this inverter work without batteries?
Yes, it can run directly from solar panels during the day without any battery connected.
3. Can I monitor it from my phone?
3. Can I monitor it from my phone?
Yes, with the optional Wi-Fi module, you can monitor data, get alerts, and control the inverter remotely via a mobile app.
4. How fast does it switch to battery when the grid fails?
4. How fast does it switch to battery when the grid fails?
It switches in about 10 milliseconds in UPS mode, fast enough to keep most devices running without interruption.
5. Can solar and grid power work at the same time?
5. Can solar and grid power work at the same time?
Yes, the inverter blends both sources, prioritizing solar to save you money.
6. What batteries are compatible?
6. What batteries are compatible?
Both lithium and lead-acid batteries with a nominal voltage of 48V are compatible.
7. Can I use it outdoors?
7. Can I use it outdoors?
Yes, but it must be installed in a dry, weather-protected location since its rating is IP21 (not waterproof).
8. What temperature range can it handle?
8. What temperature range can it handle?
It works reliably from -10°C to 60°C.
9. Is it safe for sensitive electronics like laptops?
9. Is it safe for sensitive electronics like laptops?
Yes, it produces pure sine wave output, which is cleaner and safer than what many grids provide.
10. What happens if I overload it?
10. What happens if I overload it?
It has built-in overload protection and will shut down automatically to prevent damage.
11. Can it work with a generator?
11. Can it work with a generator?
Yes, it has a dedicated generator mode (GEN mode) for compatibility with most portable generators.
12. What communication ports does it have?
12. What communication ports does it have?

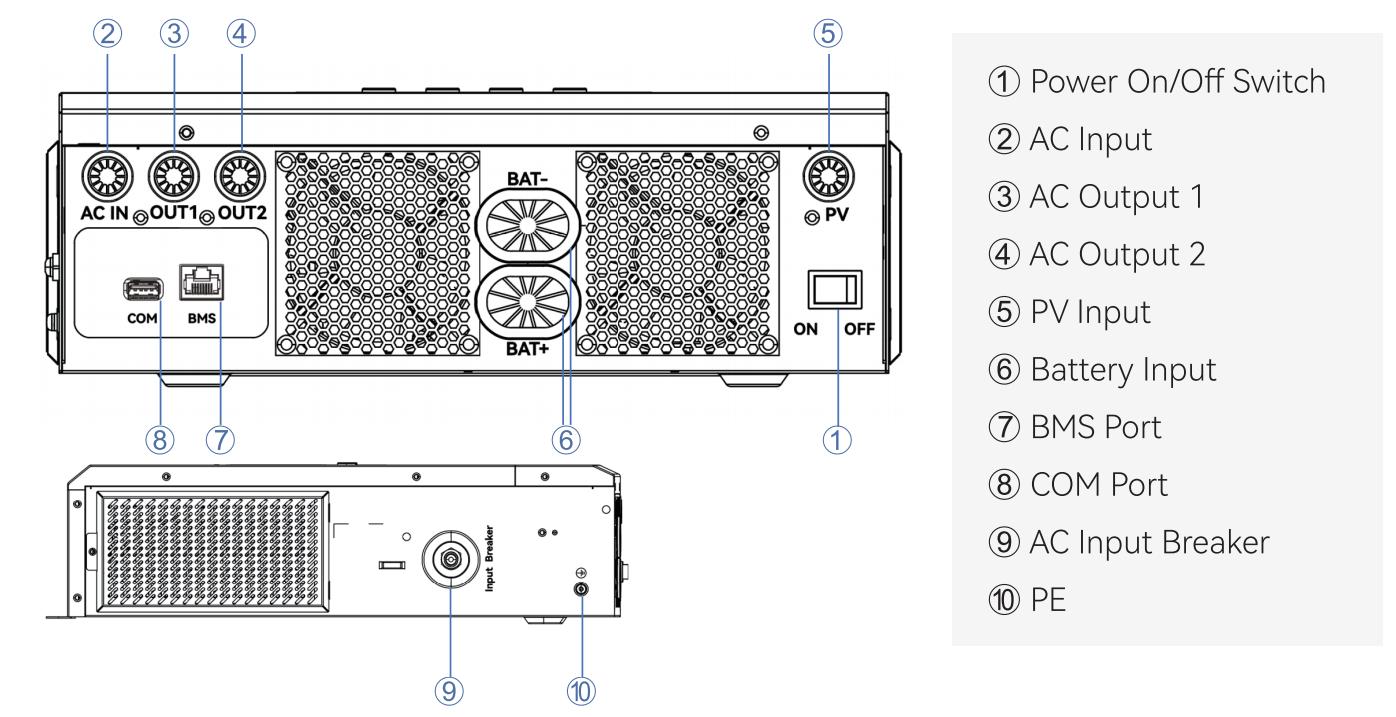

It has RS485, CAN, and RS232 ports for connecting to battery BMS or other monitoring systems.
13. How efficient is it?
13. How efficient is it?
Its maximum efficiency is 94% at 48V in battery mode, meaning very little energy is wasted as heat.
