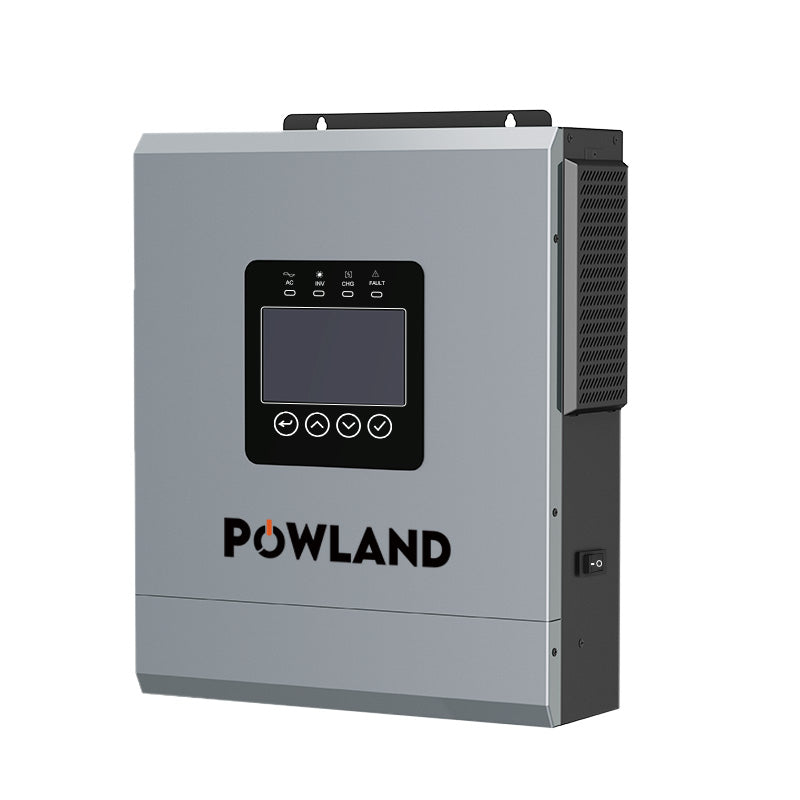

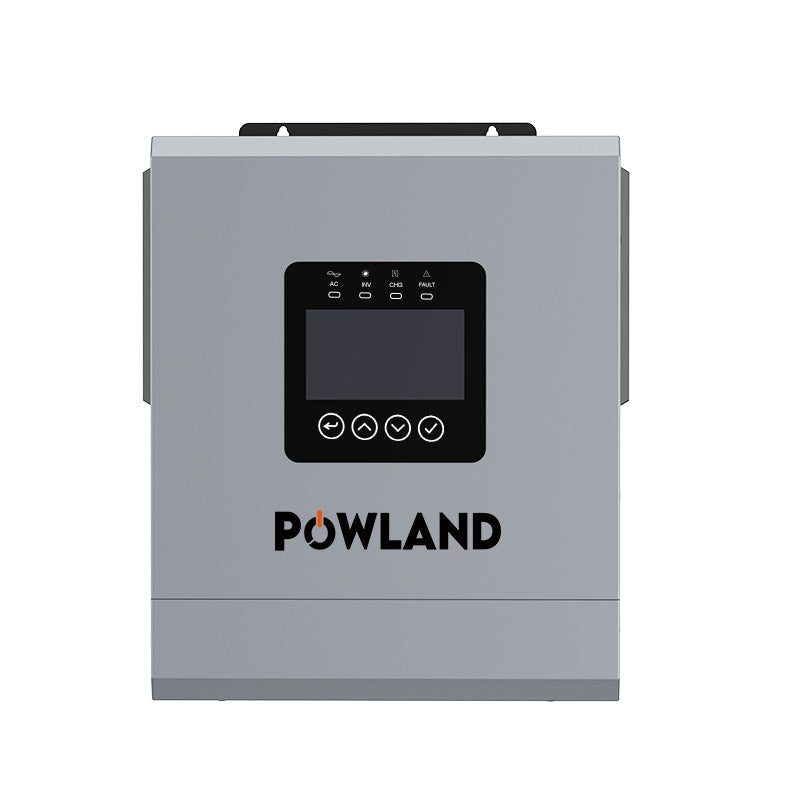

POWLAND Hybrid Solar Inverter 12kW 48V Pure Sine Wave Dual MPPTs Input WiFi
12kW High Power + Dual MPPT
12kW High Power + Dual MPPT

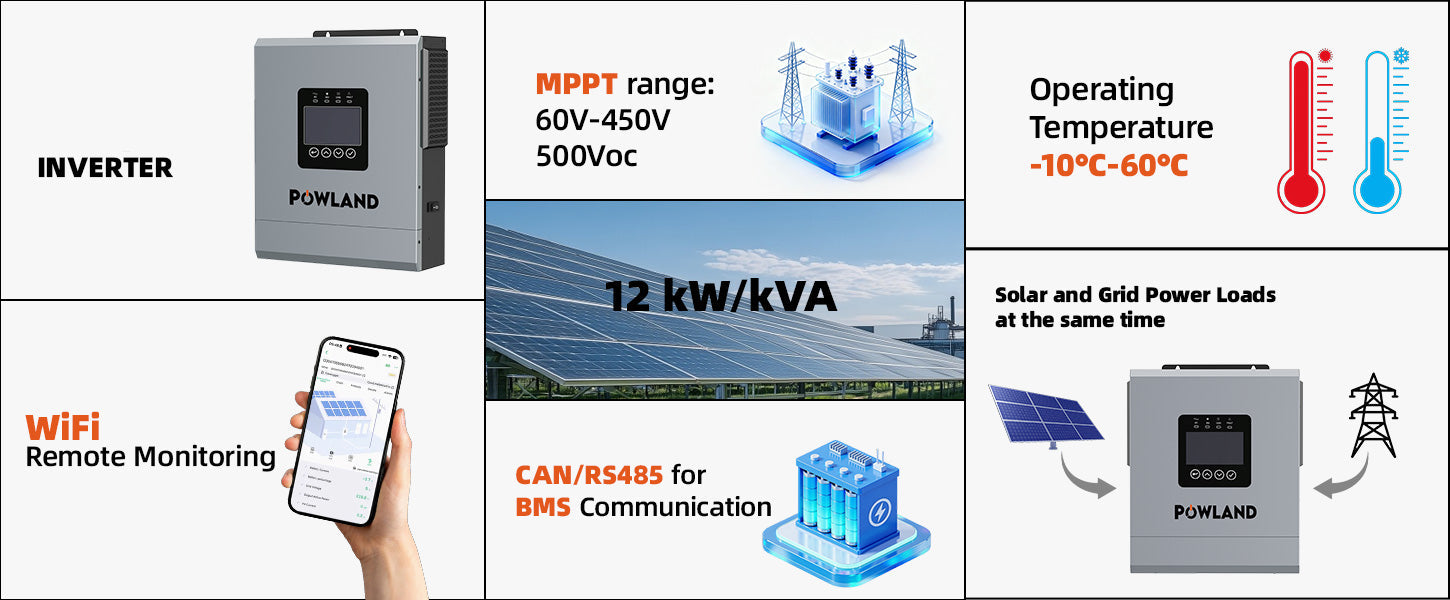

Rated 12kW with dual MPPT trackers (60V–450V) – handles more solar panels and delivers more daily power.

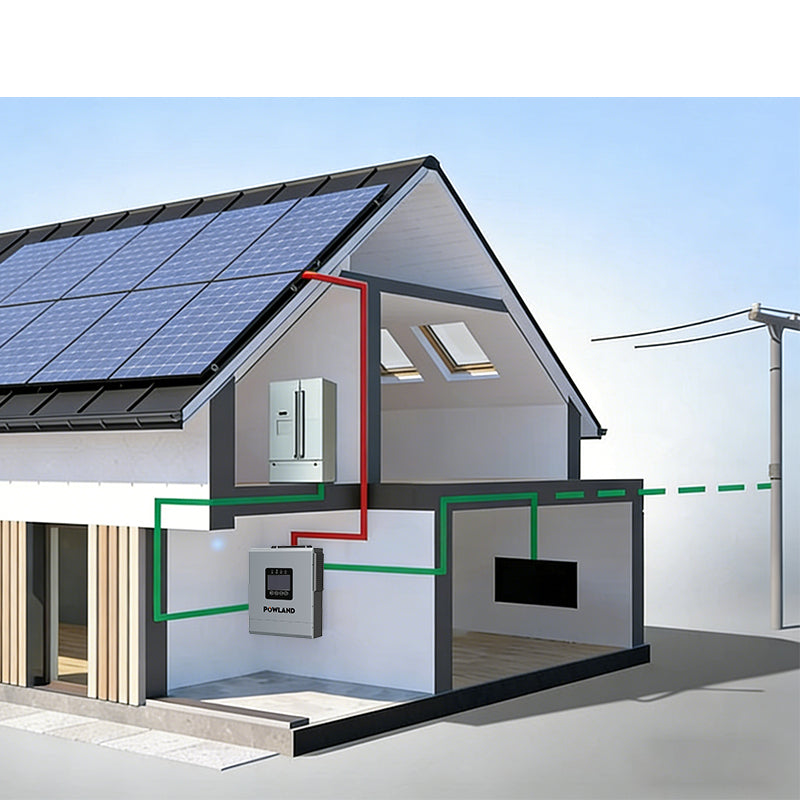

Solar & Grid Together + Feed-in to Grid
Solar & Grid Together + Feed-in to Grid
Uses solar first, then grid automatically; sell excess power back to the grid to earn money.
Smart BMS Communication + Dual AC Output
Smart BMS Communication + Dual AC Output
CAN/RS485 talks directly to lithium batteries for safer charging; two outputs let you prioritize critical loads.
Specification
Specification
AC Input
| Rated Input Voltage (VAC) | 220/230/240;L+N+PE |
| Voltage Range (VAC) | 90~280(APP/GEN mode); 170~264(UPS mode) |
| Frequency (Hz) | 50/60(Auto Adaptive) |
AC Output
| Rated Capacity (kVA/kW) | 12 (Max current of AC output 1 is 70A. Max current of AC output 2 is 40A) |
| Surge Power (kVA) | 24 |
| Voltage (VAC) | 220/230/240 |
| Power Factor (PF) | 1 |
| Frequency (Hz)） | 50/60±0.1% |
| Switch Time (ms) | 10 (APP/UPS mode) /20 (GEN mode) |
| WaveForm | Pure SineWave |
| Overload Capacity (Battery Mode) | 1min@ 102%125%load 10s@>125%load |
| Max.Efficiency (Battery Mode) | 94%@48V |
Charger(PV/AC)
| Solar Charger Type | MPPT |
| Max PV Input Current/Power | Single PV Input: 27A/9000W Dual PV Input: 22.5*2A/15000W |
| MPPT Range@Operating Voltage (VDC) | 60~450 |
| PV Start-up Voltage (VDC) | 80 |
| Max PV Open Circuit Voltage (VDC) | 500 |
| Max PV Charge Current (A) | 160 |
| Max AC Charge Current (A) | 160 |
| Max. Charge Current (PV+AC) (A) | 160 |
Battery
| Normal Voltage (VDC) | 48 |
| Battery Type | Lithium and Lead-acid |
🔒 Secure Checkout: Your payment information is encrypted and processed securely. We do not store credit card details nor have access to your credit card information.
12000W Hybrid Solar Inverter 48V Pure Sine Wave Dual AC Output MPPT WIFI Support BMS Feed-in to grid
12000W 48V hybrid solar inverter — pure sine wave, dual AC outputs, advanced MPPT, built‑in WiFi, CAN/RS485 BMS, grid feed‑in.
All‑in‑one for smart home/commercial energy.

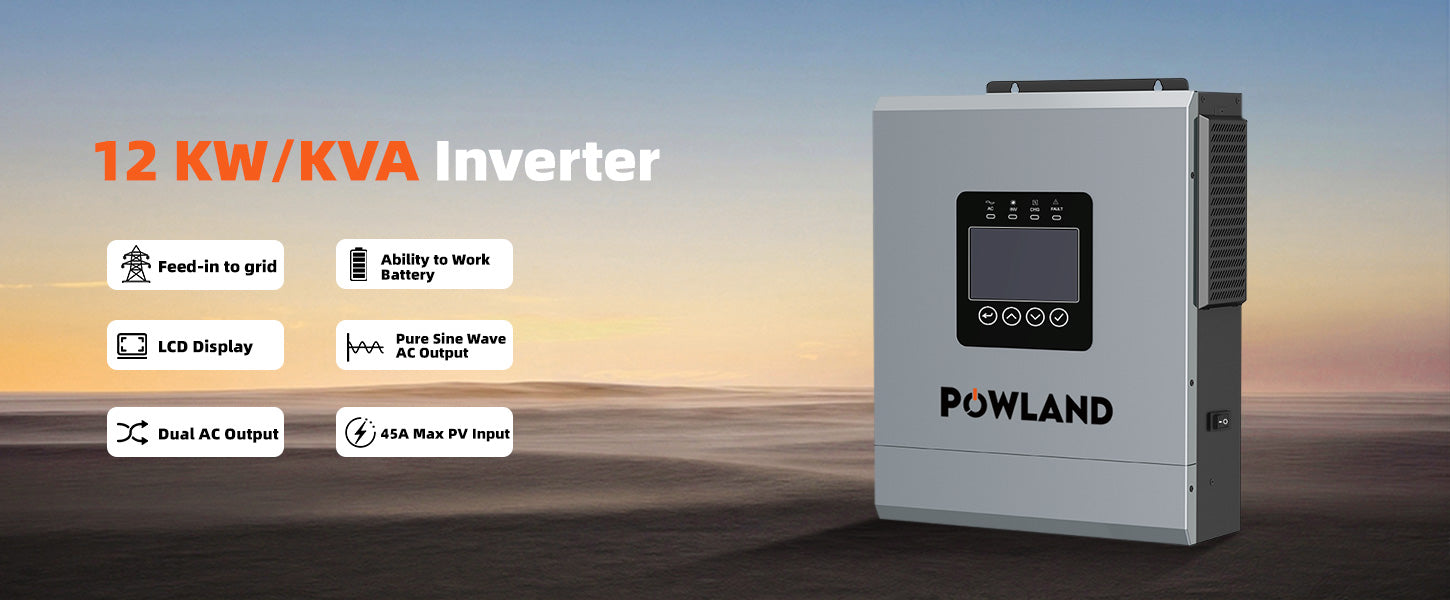

12kW Hybrid Inverter – Feed-in, Dual Output, 45A PV Input
12kW hybrid inverter — pure sine wave, dual AC outlets, dual 45A MPPT.
Grid feed-in, works with/without batteries, LCD.
Compact high-frequency design: 12kW rated / 24kW surge.
Reliable for solar storage and grid use.

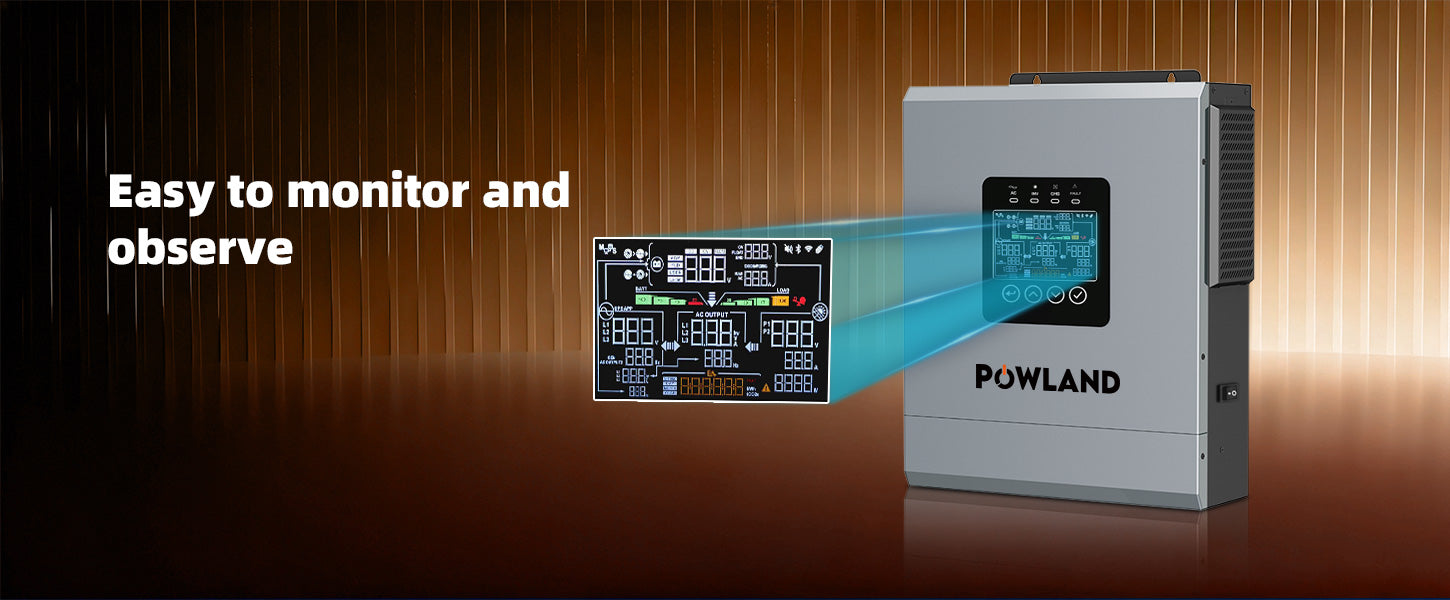

Easy Monitoring & Observation
Intuitive LCD display and optional WiFi let you monitor system performance easily — whether on-site or remotely.
Stay informed and in control.

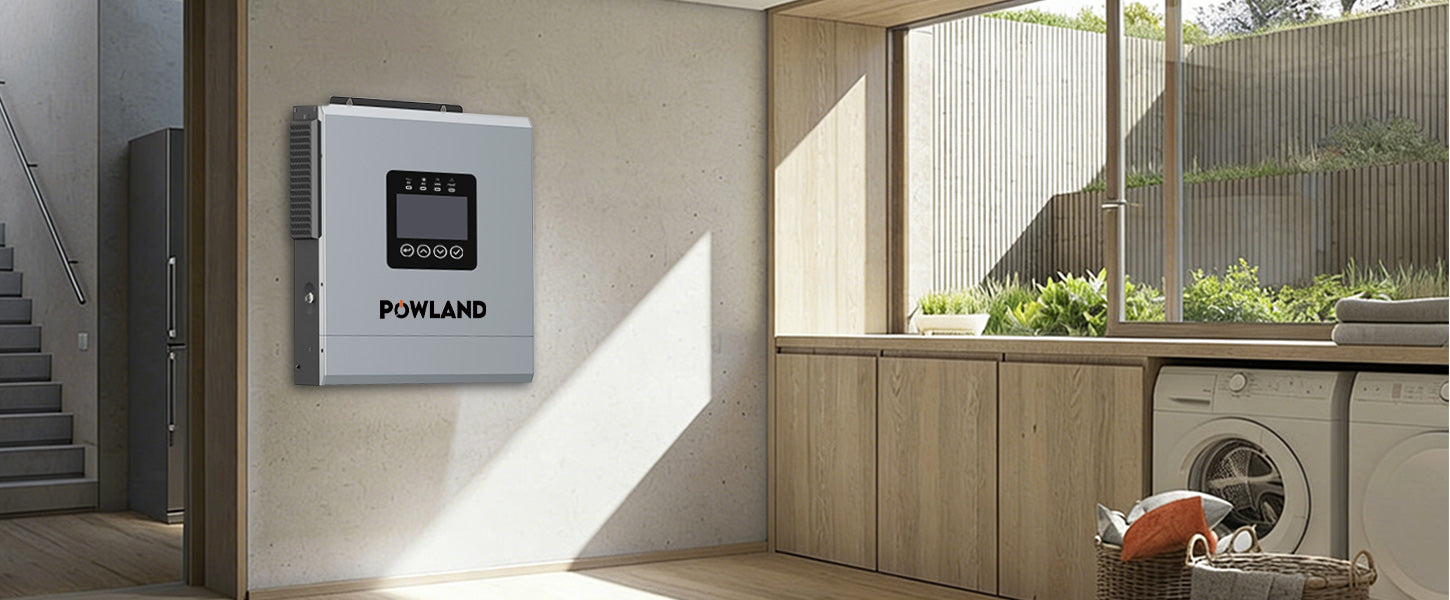

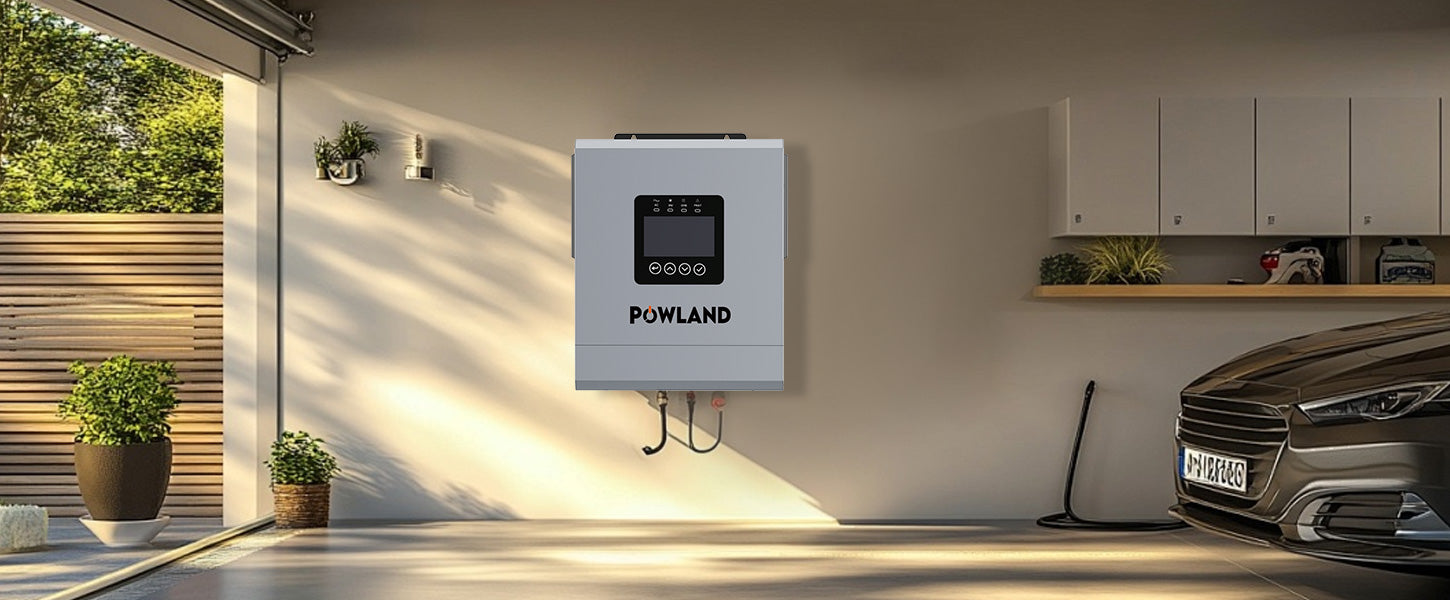

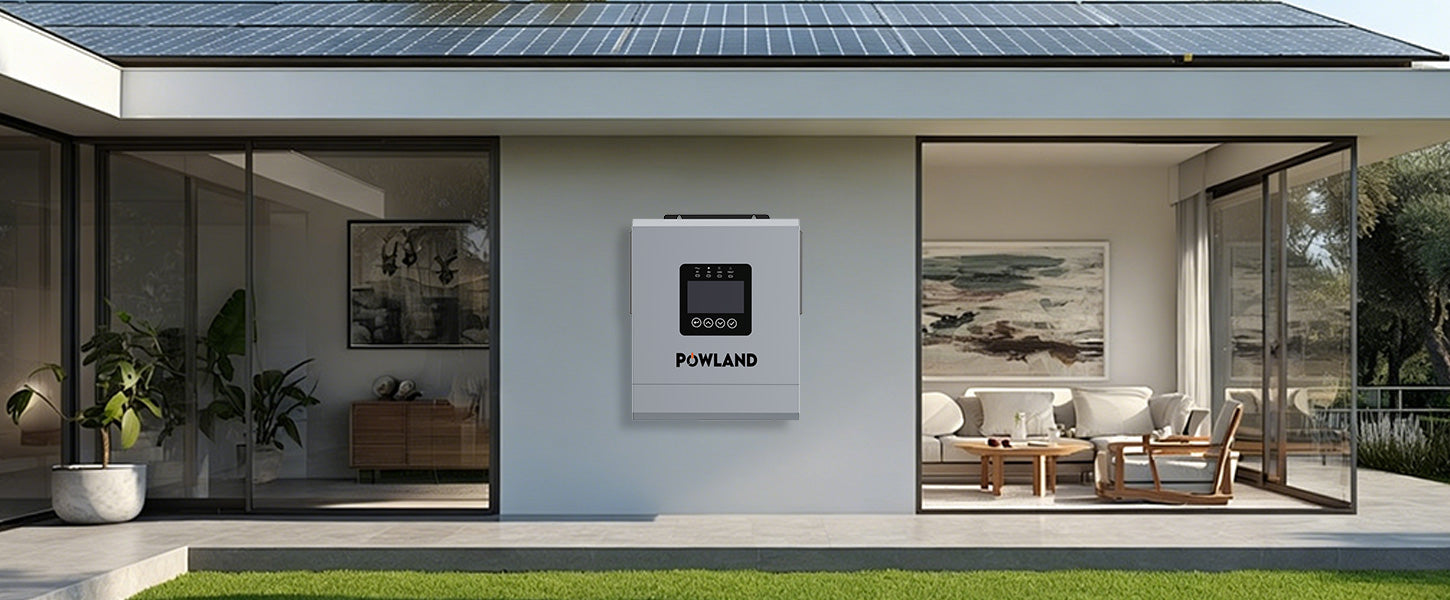

Versatile enough for any setting — configured to your liking.
From homes to commercial sites, remote cabins to off-grid — this inverter adapts seamlessly.
Backup, self-consumption, or grid-interactive. Flexible configuration, easy monitoring, reliable performance anywhere.

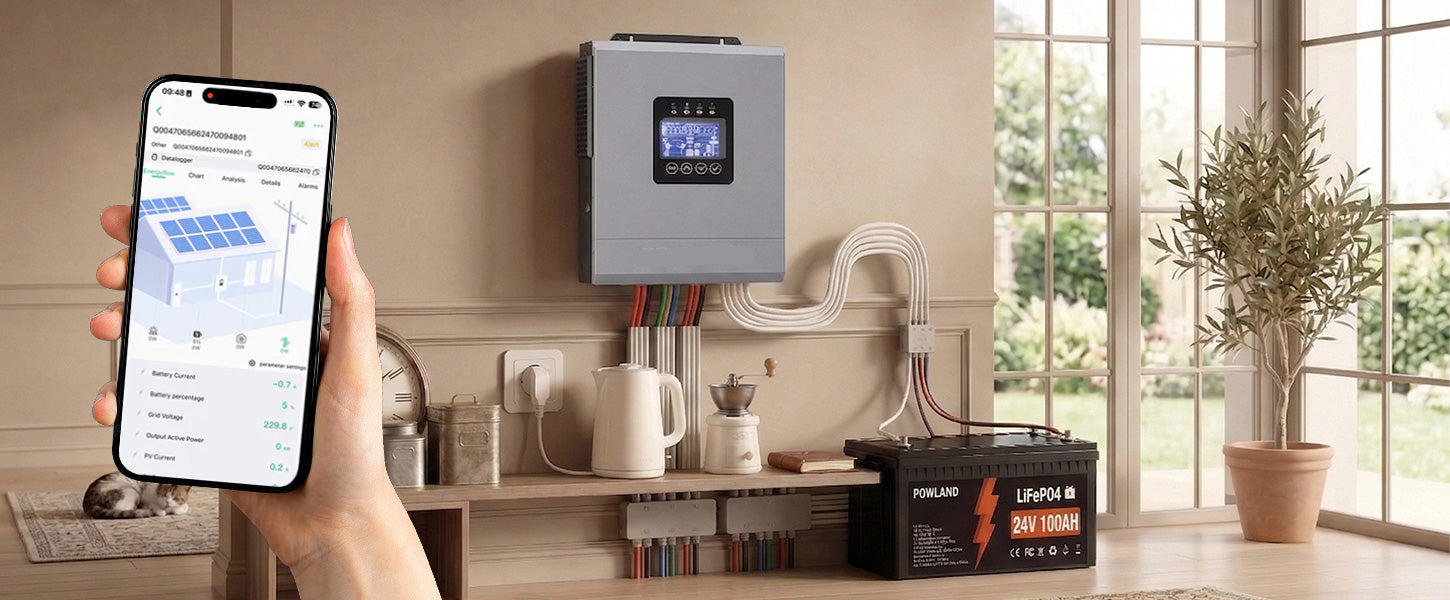

Wi-Fi enabled for real-time monitoring.
Take full control with built-in Wi‑Fi for real‑time monitoring.
Track system performance and energy data easily via mobile or web — 24/7 peace of mind over your 12kW power system.
Powerful 12kW Pure Sine Wave Output
12000W pure sine wave output – clean, stable power for all household appliances: refrigerators, ACs, washers, and sensitive electronics like computers and TVs.

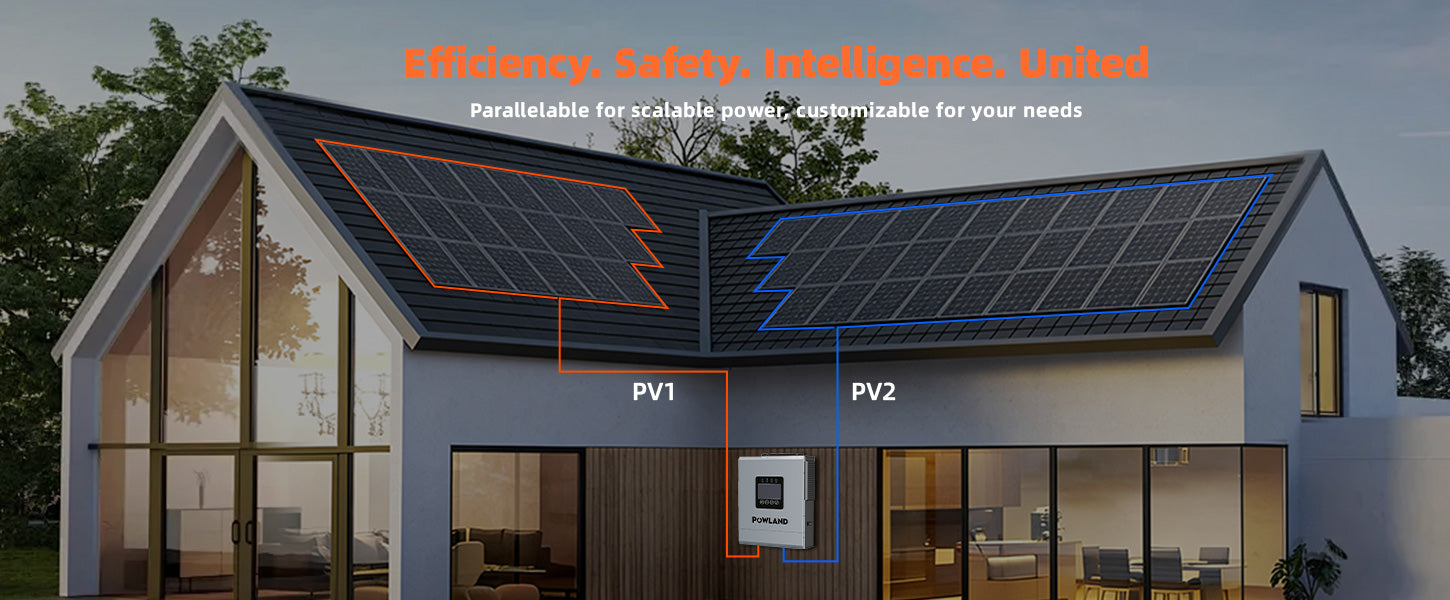

This inverter supports parallel operation — connect multiple units to scale power as your needs grow. Efficiency, safety, and intelligence come together in a customizable solution.
Powland 12kW 24V Hybrid Solar Inverter
Each piece is built for longevity, ensuring durability, repairability, flexibility.

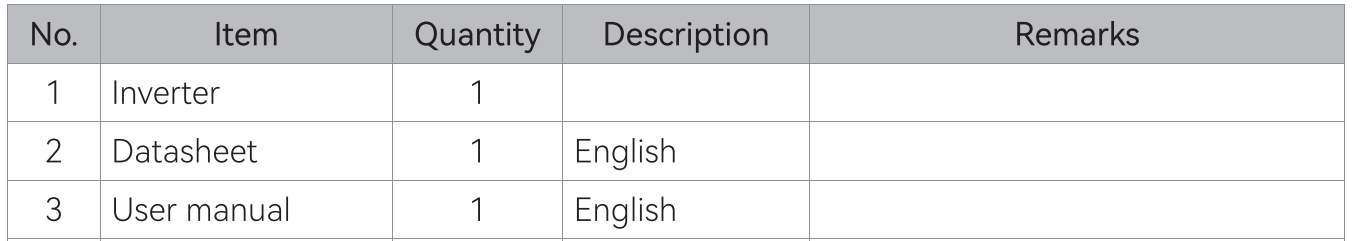

Package includes
Choose the One That Fits Your Needs
From essential backup to high-demand applications, we have the right inverter for you. Choose based on your energy needs, system voltage, and budget—and power with confidence.
|
|
|
|
|
|
|
|
|
|
12kW / 48V System |
12.0kW (Split phase)/7.2kW (Single phase)/48V System |
4.0kW / 24V System |
6.5kW / 48V System |
10.0kW / 48V System |
3.6kW / 24V System |
6.5kW / 48V System |
|
|
24kVA (Heavy Duty) |
24kVA(Heavy Duty ) |
8.0kW (Up to 5 sec) |
12kVA |
10.0kW |
7.2kVA |
12kVA |
|
|
15000W (Dual MPPT) |
12000W(6000W + 6000W Dual MPPT) |
5600W |
9000W(4500W + 4500W Dual MPPT) |
9000W |
5000W |
9000W |
|
|
160A (Ultra-Fast) |
160A AC / 220A PV(220A Ultra-Fast Hybrid） |
110A AC / 140A PV |
120A AC / 150A PV (150A Max Hybrid) |
250A Max PV |
100A (PV+AC) |
120A (PV+AC) |
|
|
Dual AC Output |
240Vac (L1/L2 Split Phase) |
120Vac ± 5% |
120Vac |
120V/240V Split Phase |
Dual AC Output (Optional) |
Dual AC Output |
What Our Customers Say
Frequently Asked Questions
User Manual
User Manual
1. Can I monitor the inverter remotely?
1. Can I monitor the inverter remotely?
Yes, optional WiFi monitoring allows you to check system status from your smartphone or computer.
2. What is the operating temperature range of this inverter?
2. What is the operating temperature range of this inverter?
The inverter operates reliably between -10°C and 60°C.
3. Does the inverter work in high altitude locations?
3. Does the inverter work in high altitude locations?
Yes, it can operate at altitudes up to 4000 meters, with derating above 2000 meters.
4. What communication interfaces are available?
4. What communication interfaces are available?
The inverter comes with RS232, RS485, and CAN interfaces for flexible connectivity.
5. What is the switch time when power source changes?
5. What is the switch time when power source changes?
The switch time is 10 milliseconds in APP/UPS mode and 20 milliseconds in GEN mode.
6. What battery types does this inverter support?
6. What battery types does this inverter support?
It supports both lithium and lead-acid batteries with a 48V nominal voltage.
7. What type of AC waveform does this inverter produce?
7. What type of AC waveform does this inverter produce?
It produces a pure sine wave output, safe for all household appliances and sensitive electronics.
8. Can I use both PV and AC to charge the battery at the same time?
8. Can I use both PV and AC to charge the battery at the same time?
Yes, the inverter supports simultaneous PV and AC charging with a maximum total charge current of 160A.
