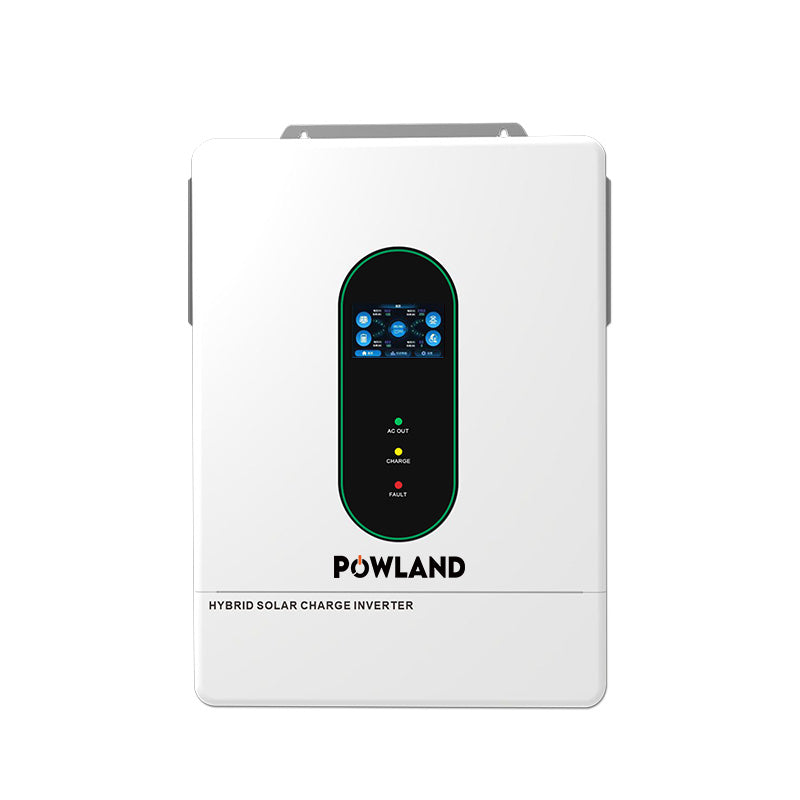

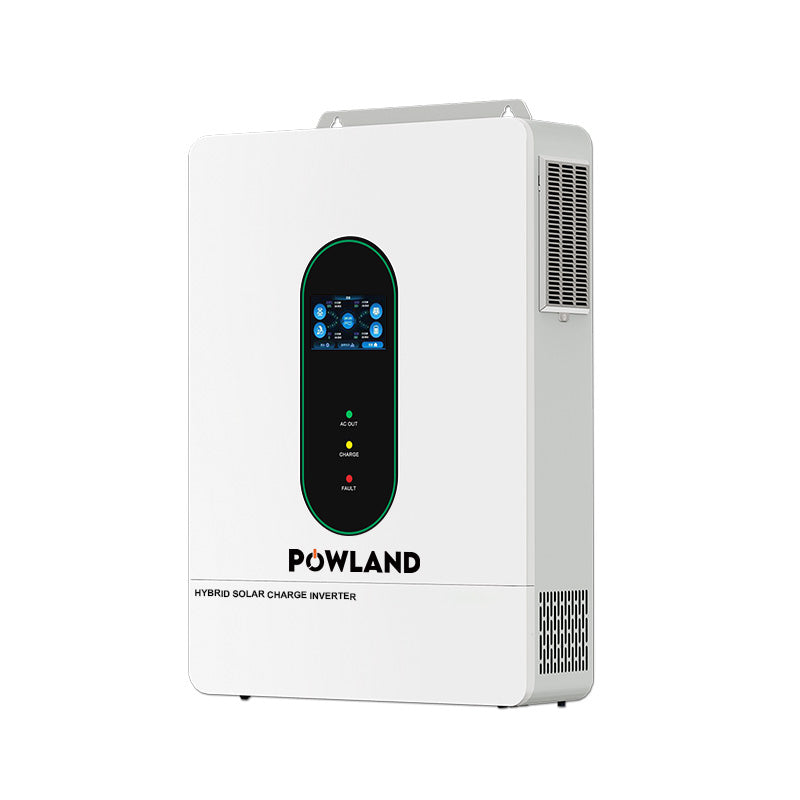

POWLAND Hybrid Solar Inverter 12kW 48V Split Phase Pure Sine Wave WiFi UL1741 FCC Certified
Massive Power & Surge Capacity
Massive Power & Surge Capacity
12kW rated output (12,000W split-phase / 7,200W single-phase) with 18kVA surge capacity – easily starts 6HP motors. Pure sine wave output with power factor 1.
Ultra-Fast Hybrid Charging
Ultra-Fast Hybrid Charging
Dual independent MPPT with 12,000W max PV input (500Vdc / 22A+22A). PV charging up to 220A + AC charging up to 160A – total hybrid charging up to 220A. Compatible with lead-acid & lithium batteries.
Flexible Operation & Energy Saving
Flexible Operation & Energy Saving
Supports battery-free operation (solar + grid power loads directly). Bypass & inverter output modes with 10ms UPS switching. Auto power-saving mode when load <25W per phase.
Specification
Specification
Parallel mode
| Permitted parallel number | 1~6 |
AC mode
| Rated input voltage | 240Vac(L1/L2) |
| Input phase voltage range | (85Vac~140Vac)±2% |
| Frequency | 60Hz (Auto detection) |
| Efficiency | >95% |
| Conversion time (bypass and inverter) | 10ms (typical) |
| Maximum bypass phase overload current | 60A(L1/L2) |
Inverter mode
| Output voltage waveform | Pure sine wave |
| Rated output power (VA) | Split phase: 12000 |
| Rated output power (VA) | Single phase: 7200( limited by the wiring terminals) |
| Rated output power (W) | Split phase: 12000 |
| Rated output power (W) | Single phase: 7200 ( limited by the wiring terminals) |
| Power factor | 1 |
| Rated output voltage (Vac) | 240Vac(L1/L2) |
| Output voltage error | ±5% |
|
Output frequency range (Hz) |
60Hz±0.3Hz |
|
Maximum Efficiency |
>91% |
|
Loaded motor capability |
6HP |
|
Bypass circuit breaker phase specification |
63A(L1/L2) |
|
Rated battery input voltage |
51.2V (Minimum starting voltage 44V） |
Ac charging
| Battery type | Lead acid or lithium battery |
| Maximum charge current(can be set) | 160A |
| Charge current error | ±5Adc |
| Charge voltage range | 40-58.6Vdc |
PV charging
| Number of MPPT groups | 2 |
| Maximum PV open circuit voltage | 500Vdc |
| PV operating voltage range |
90Vdc~485Vdc |
| MPPT voltage range |
90Vdc~450Vdc |
| Battery voltage range |
40-58.6Vdc |
| Maximum PV input power |
6000W+6000W |
| Maximum PV input current | 22A+22A |
| PV charge current(can be set) |
220A |
Hybrid charging Max charger current specifications (AC charger+PV charger)
| Max charger current(can be set) |
0-220A |
Certified specifications
| Certification | UL1741 |
| EMC certification level |
FCC part15, CLASS B |
| Operating temperature range |
-10°C to 55°C(>45°C derating) |
| Storage temperature range |
-25°C~60℃ |
| Humidity range | 5% to 95% (Conformal coating protection) |
| Noise | ≤60dB |
| Communication interface | USB/RS485/WiFi/GPRS)/ Dry node control |
| Size (L"W*D) | 620mm*450mm*132mm |
| Weight (kg) | 23.8 |
🔒 Secure Checkout: Your payment information is encrypted and processed securely. We do not store credit card details nor have access to your credit card information.
12kW 48V Hybrid Inverter – Pure Sine Wave, Dual MPPT, 220A Hybrid Charging, Battery-Free Support, UL1741
The Inverter You Can Count On – Anywhere, Anytime.

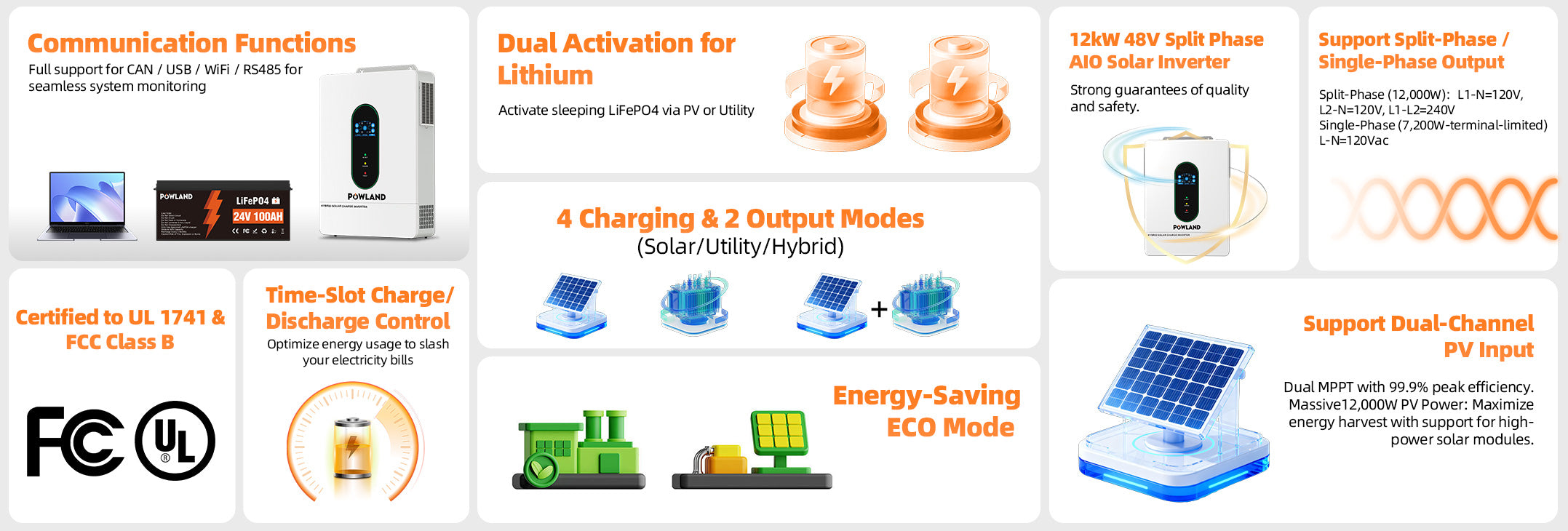

All-in-One Energy Intelligence
Dual MPPT · 4 charging modes · 2 output modes
Time-slot control · ECO mode
CAN/USB/WiFi/RS485 · UL & FCC certified.
Power Your Whole Home
12kW Heavy-Duty Split Phase Hybrid Inverter – Dual MPPT 99.9%, 220A Fast Charging, 10ms UPS, UL1741 Certified for Whole-Home Power
WiFi Remote Monitoring – Smart Control at Your Fingertips
Optional WiFi module for remote monitoring – check your system from anywhere via smartphone or PC.
Dual MPPT = double the flexibility
Dual MPPT technology delivers 99.9% tracking efficiency and 12,000W of solar input – so you can harvest more energy, charge faster, and rely less on the grid.
All-Weather Reliability
Conformal coated circuit board – resistant to humidity, dust, and salt spray.
Rated for -10°C to 55°C operation.

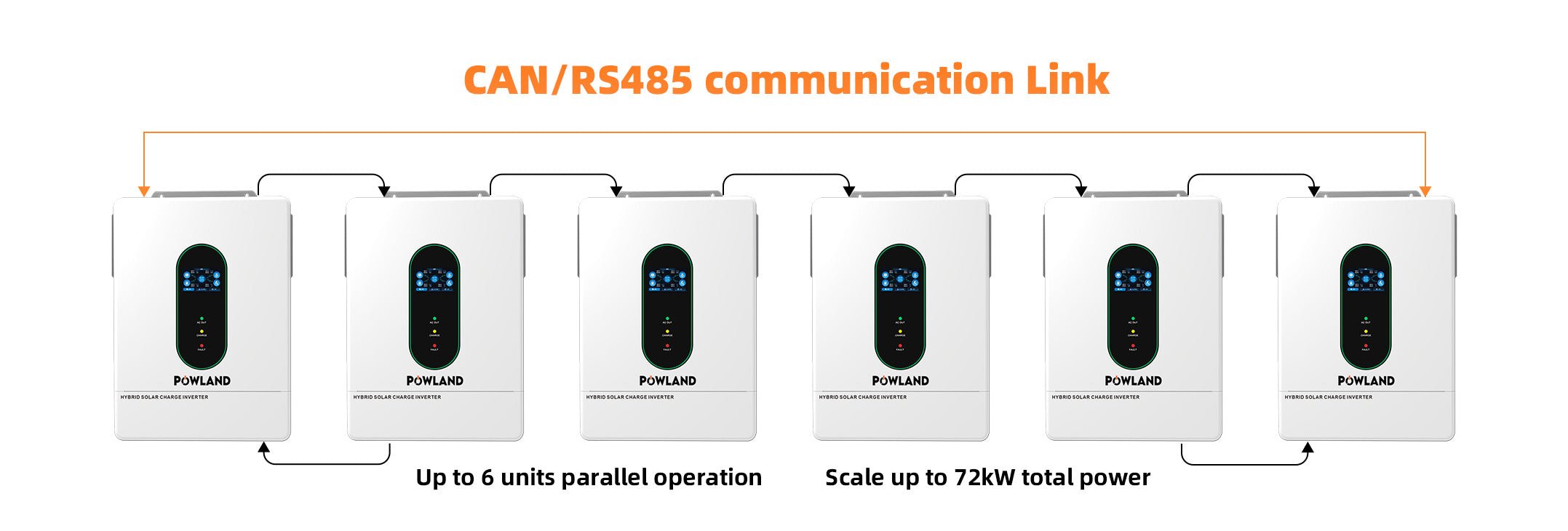

Parallel Ready – Scale Your Solar System from 12kW to 72kW
Start with one inverter. Add more as your energy needs grow. Parallel up to 6 units for massive power.

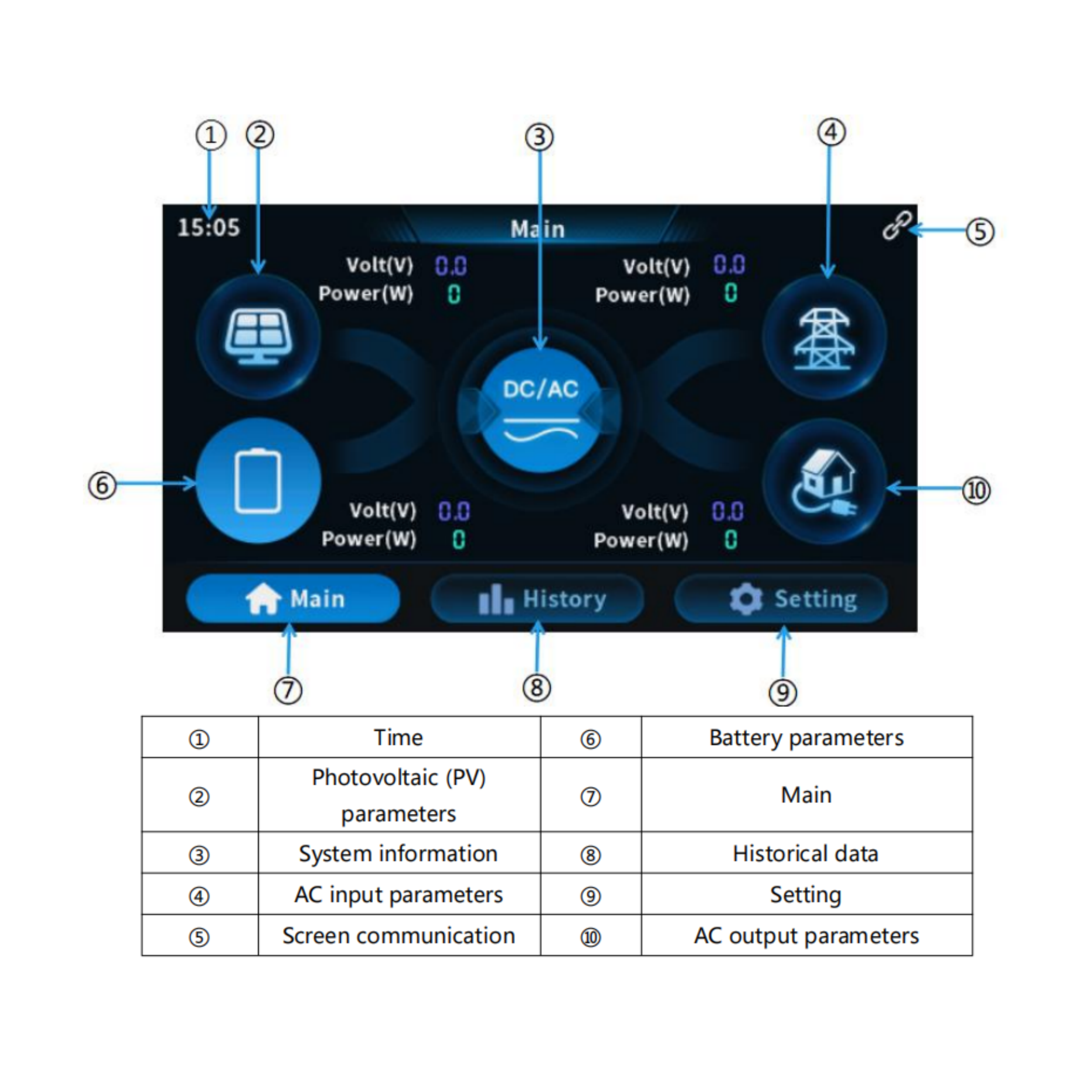

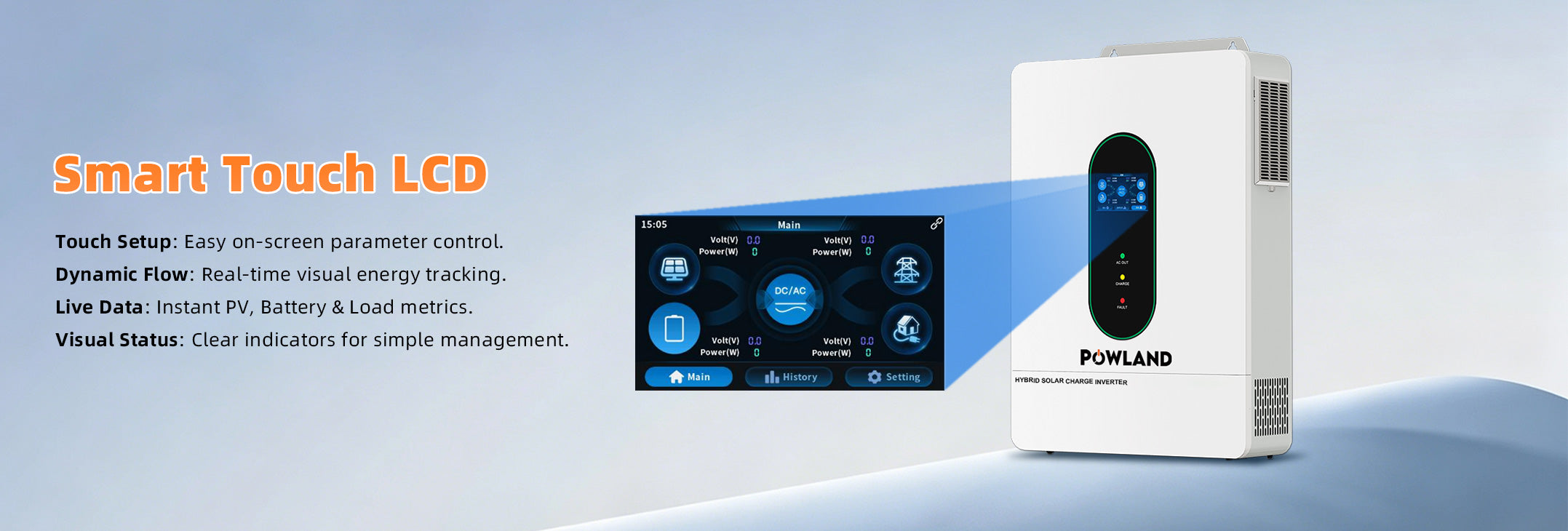

LCD Gives You Complete Energy Visibility at A Glance
Real-time system data displayed on an intuitive touchscreen with animated flow diagrams.
Wide Voltage. Full Protection. Whisper Quiet.
Full protection for peace of mind. ≤60dB for peace and quiet. Wide voltage for total flexibility.
Delivery and Shipping
Fast delivery via trusted carriers. Dedicated support and real-time tracking. Your power arrives safely, ready to use.
Choose the One That Fits Your Needs
From essential backup to high-demand applications, we have the right inverter for you. Choose based on your energy needs, system voltage, and budget—and power with confidence.
|
|
|
|
|
|
|
12.0kW (Split phase)/7.2kW (Single phase)/48V System |
4.0kW / 24V System |
6.5kW / 48V System |
10.0kW / 48V System |
|
|
24kVA(Heavy Duty ) |
8.0kW (Up to 5 sec) |
12kVA |
10.0kW |
|
|
12000W(6000W + 6000W Dual MPPT) |
5600W |
9000W(4500W + 4500W Dual MPPT) |
9000W |
|
|
160A AC / 220A PV(220A Ultra-Fast Hybrid） |
110A AC / 140A PV |
120A AC / 150A PV (150A Max Hybrid) |
250A Max PV |
|
|
240Vac (L1/L2 Split Phase) |
120Vac ± 5% |
120Vac |
120V/240V Split Phase |
