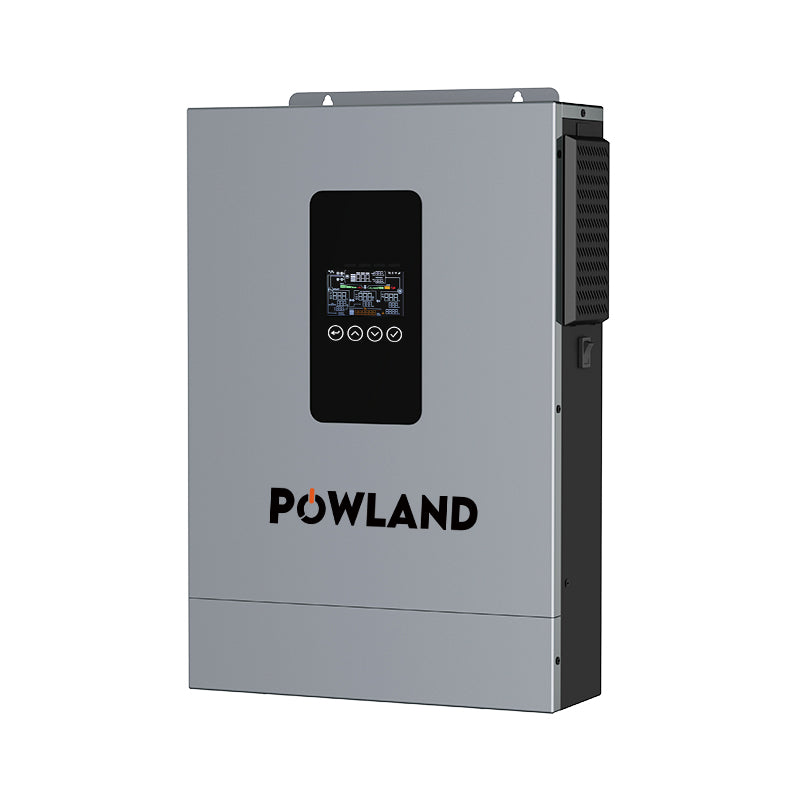

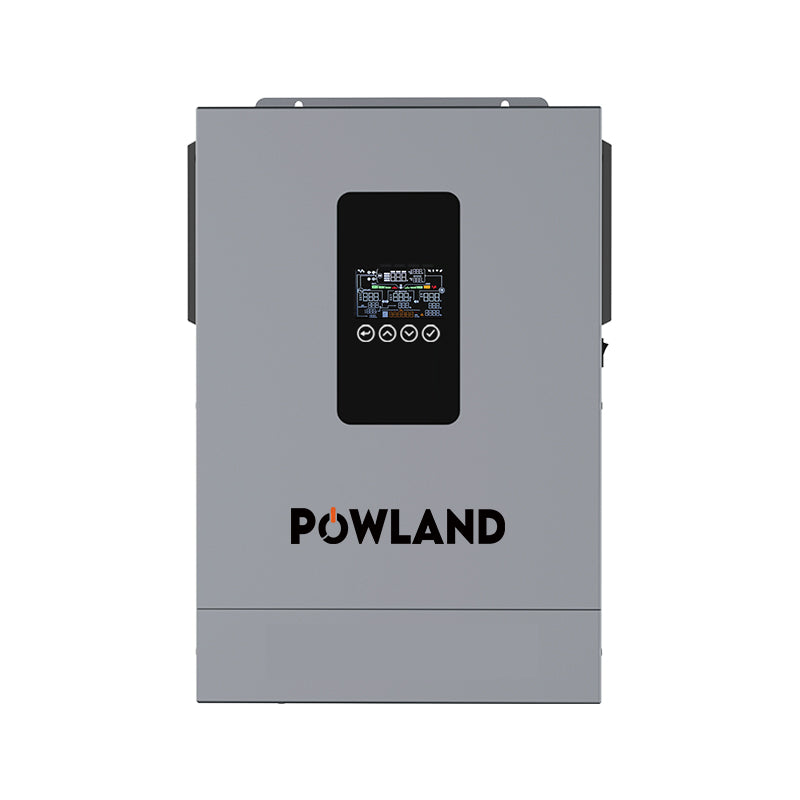

POWLAND Hybrid Solar Inverter 3.6kW 24V Pure sine wave Inverter MPPT WiFi
3.6kW Rated Output, 7.2kW Surge Capacity
3.6kW Rated Output, 7.2kW Surge Capacity
Pure sine wave output, power factor 1. Handles continuous loads and motor startup surges with ease.
Wide MPPT Voltage Range (40V–450V, 500Voc)
Wide MPPT Voltage Range (40V–450V, 500Voc)
High-frequency design, compact and lightweight. Maximizes solar harvest across diverse panel configurations.

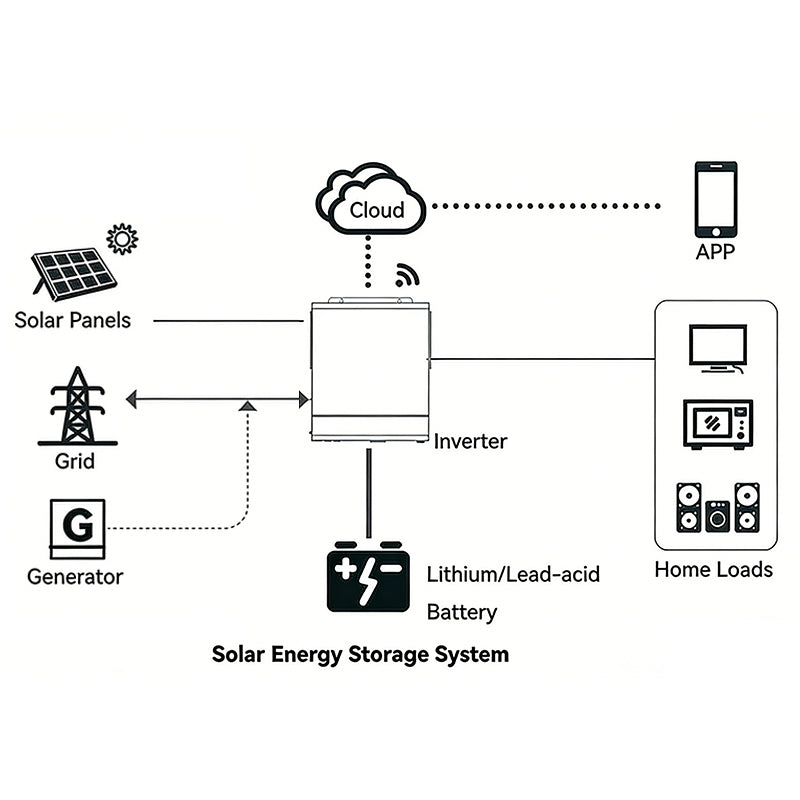

Dual Charging & Grid Interaction
Dual Charging & Grid Interaction
Simultaneous solar and grid charging; supports feed-in to grid for added flexibility.
Specification
Specification
AC Input
| Rated Input Voltage (VAC) | 208/220/230/240; L+N+PE |
| Voltage Range (VAC) | 90~280(APP/GEN mode); 170~264(UPS mode) |
| Frequency (Hz) | 50/60 (Auto Adaptive) |
AC Output
| Rated Capacity (kVA/kW) | 3.6 (Output Power rating willbe reduced to 90%, when setting the Output Voltage to 208V) |
| Surge Power (kVA) | 7.2 |
| Voltage (VAC) | 208/220/230/240 |
| Power Factor (PF) | 1 |
| Frequency (Hz)） | 50/60±0.1% |
| Switch Time (ms) | 10 (APP/UPS mode) / 20 (GEN mode) |
| WaveForm | Pure SineWave |
| Overload Capacity (Battery Mode) |
60s@102%~110%load; 10s@110%~130%load; |
| Max.Efficiency (Battery Mode) | 92%@24VDC |
Charger(PV/AC)
| Solar Charger Type | MPPT |
| Max PV Input Current/Power | 18A/5000W |
| MPPT Range@Operating Voltage (VDC) | 40~450 |
| PV Start-up Voltage (VDC) | 60 |
| Max PV Open Circuit Voltage (VDC) | 500 |
| Max PV Charge Current (A) | 100 |
| Max AC Charge Current (A) | 100 |
| Max. Charge Current (PV+AC) (A) |
100 |
Battery
| Normal Voltage (VDC) | 24 |
| Battery Type | Lithium and Lead-acid |
🔒 Secure Checkout: Your payment information is encrypted and processed securely. We do not store credit card details nor have access to your credit card information.

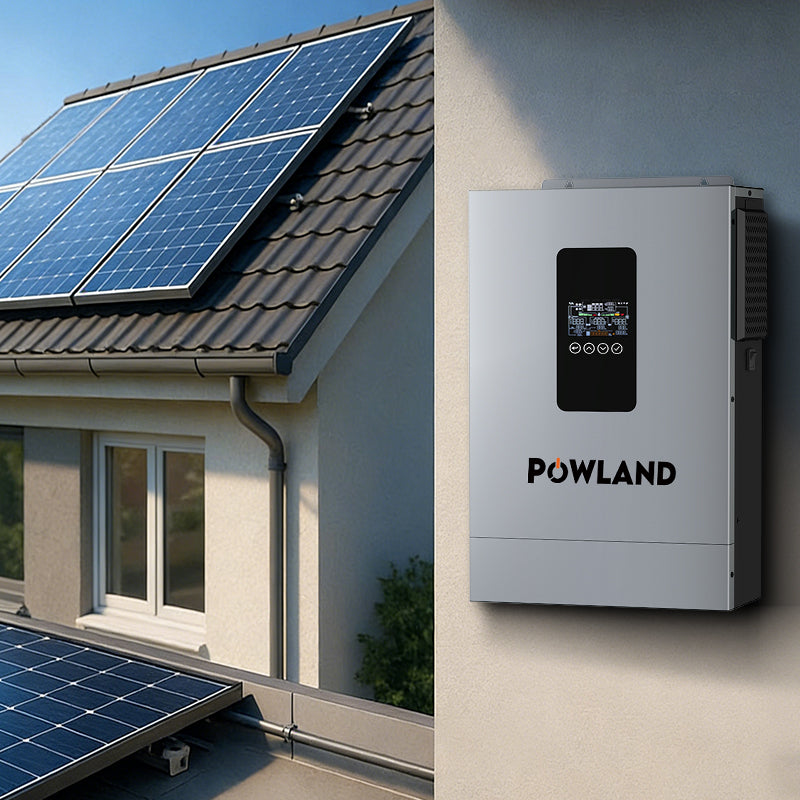

POWLAND 3.6kW 24V Grid-Interactive Hybrid Solar Inverter
A compact, high-frequency pure sine wave inverter featuring simultaneous dual charging, grid feed-in capability, and an ultra-wide AC input range for smart, flexible energy management.
High-Efficiency 3600W Solar Inverter with 100A Fast Charging
Deliver a robust 3600W rated power and rapid battery replenishment up to 100A, driven by an optimized 40V–450V MPPT range for maximum energy conversion.

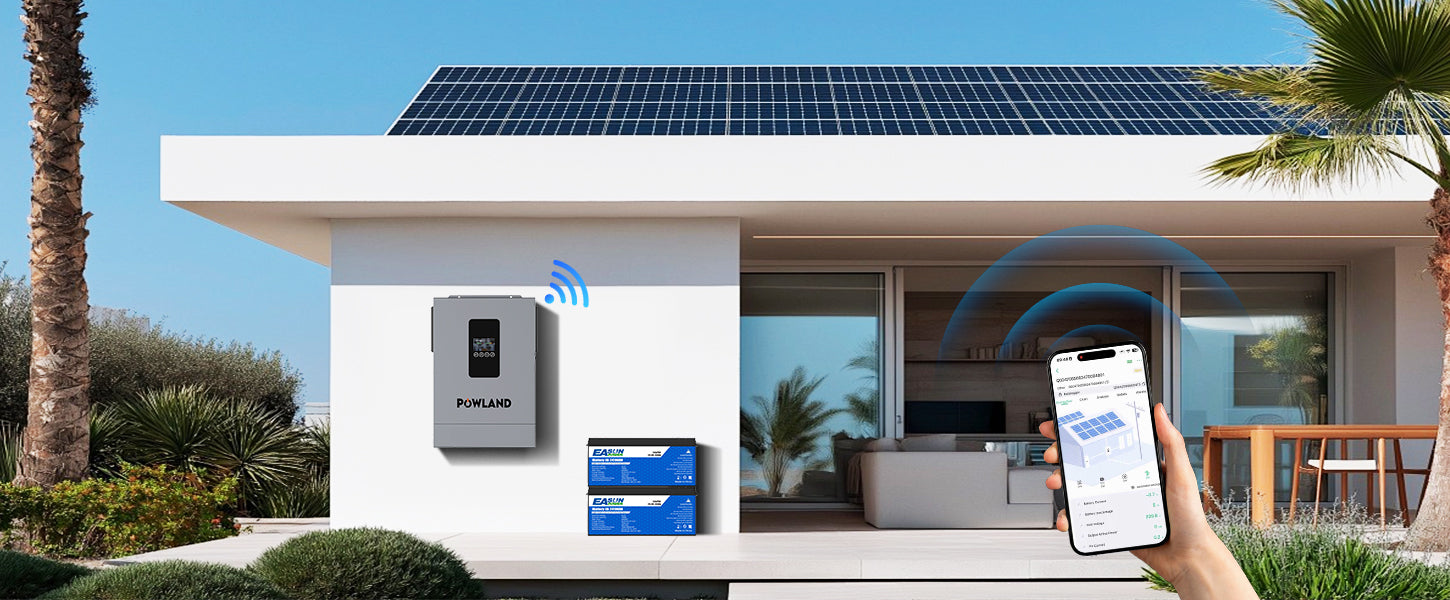

WiFi Remote Monitoring – Smart Control at Your Fingertips
Built-in WiFi for remote control via app or web. Check status, battery, load, and history anywhere.
Adjust settings remotely. Smart control for your home energy storage.

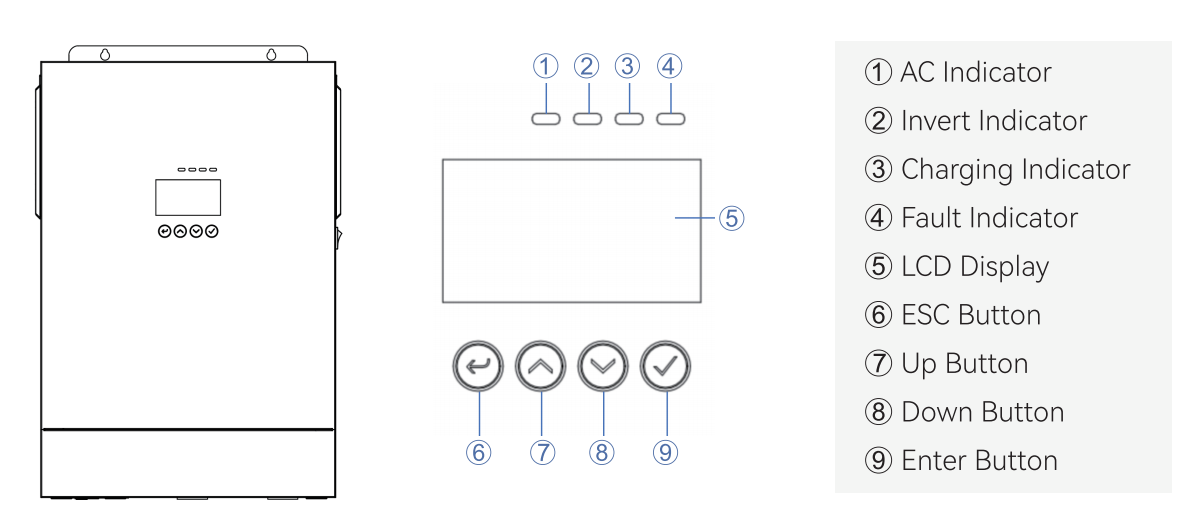

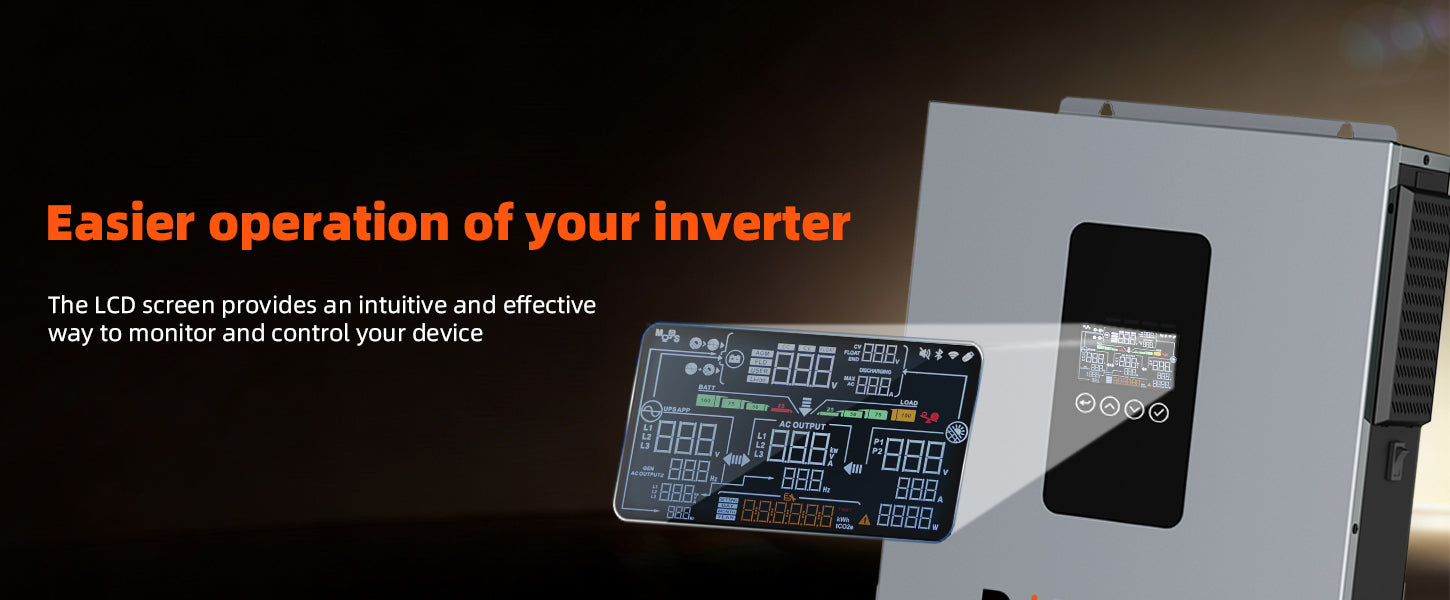

Intuitive LCD Display for Effortless Inverter Operation
Monitor and control your system settings seamlessly through a clear, user-friendly LCD screen designed for real-time status tracking and simplified device management.

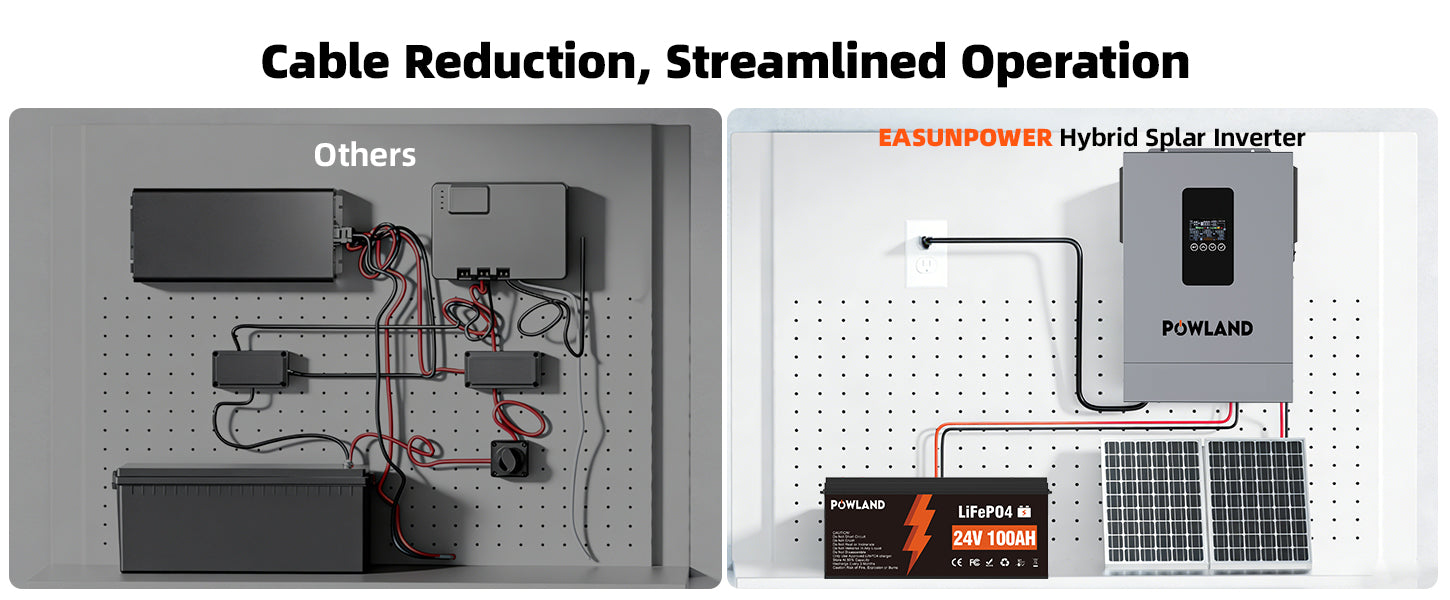

Before
After

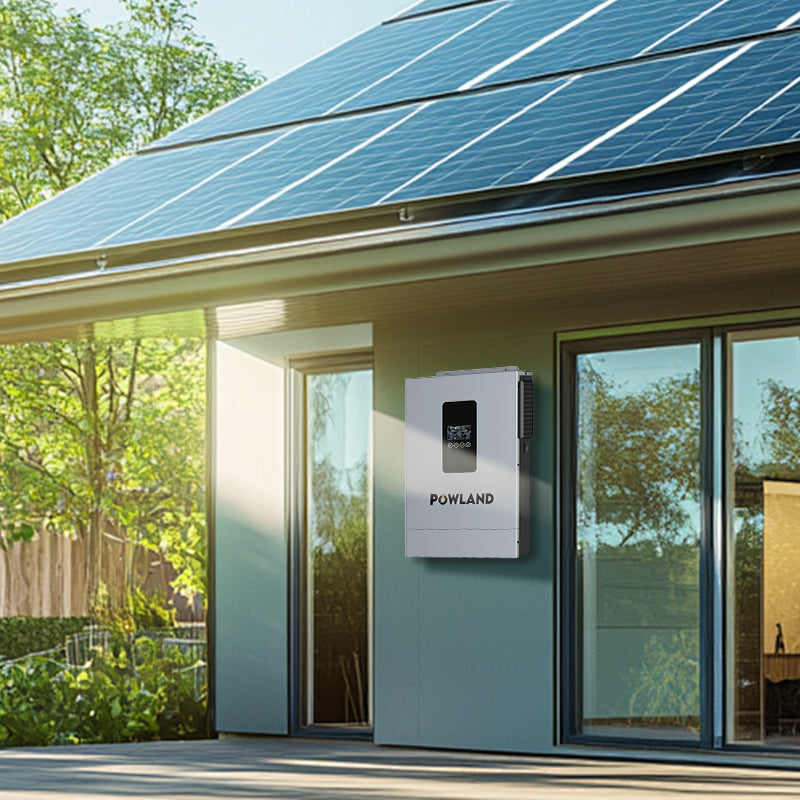

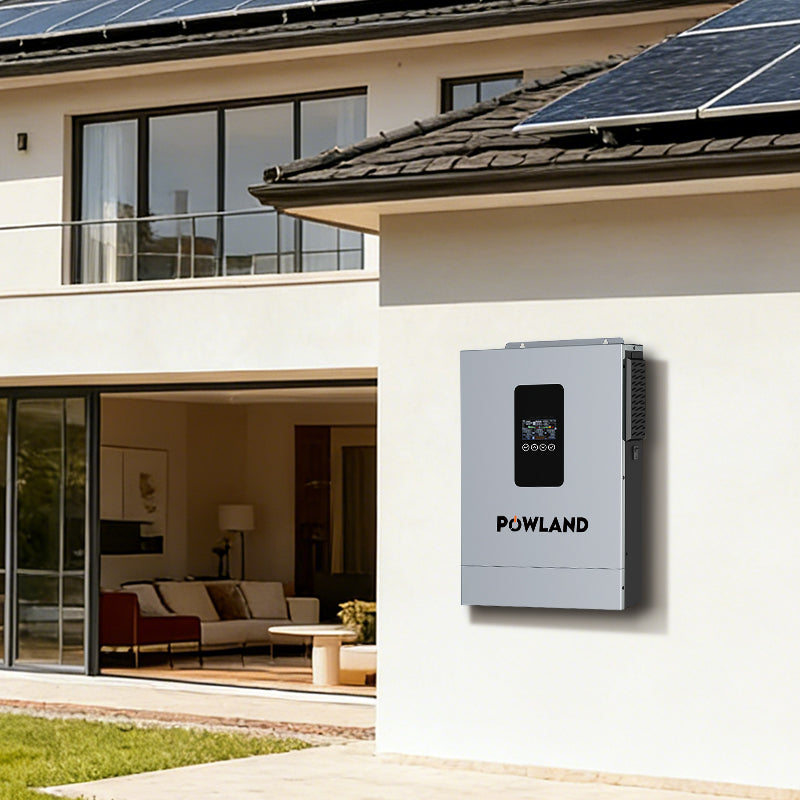

Flexible for Various Installation Scenarios – One Inverter, Infinite Possibilities
Need power anywhere—home, solar field, farm, or workshop?

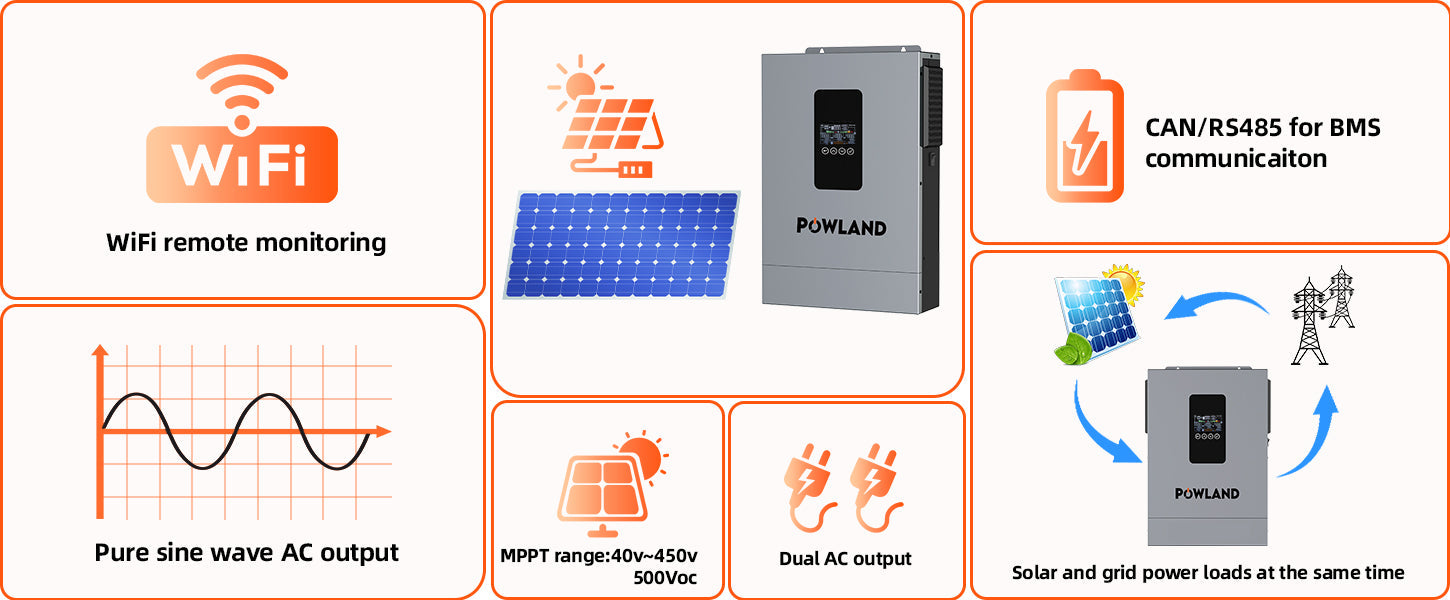

This single inverter handles it all: WiFi monitoring, pure sine wave, wide MPPT range, BMS communication, and hybrid solar/grid operation.

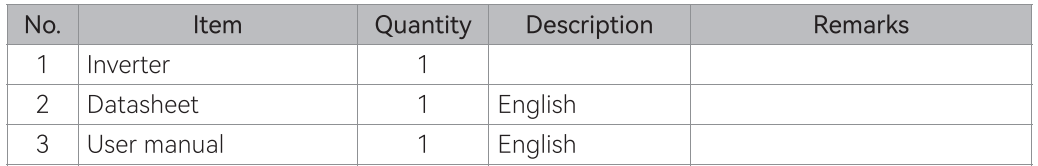

Package includes
Choose the One That Fits Your Needs
From essential backup to high-demand applications, we have the right inverter for you. Choose based on your energy needs, system voltage, and budget—and power with confidence.
|
|
|
|
|
|
|
|
|
|
3.6kW / 24V System |
12.0kW (Split phase)/7.2kW (Single phase)/48V System |
4.0kW / 24V System |
6.5kW / 48V System |
10.0kW / 48V System |
6.5kW / 48V System |
12kW / 48V System |
|
|
7.2kVA |
24kVA(Heavy Duty ) |
8.0kW (Up to 5 sec) |
12kVA |
10.0kW |
12kVA |
24kVA (Heavy Duty) |
|
|
5000W |
12000W(6000W + 6000W Dual MPPT) |
5600W |
9000W(4500W + 4500W Dual MPPT) |
9000W |
9000W |
15000W (Dual MPPT) |
|
|
100A (PV+AC) |
160A AC / 220A PV(220A Ultra-Fast Hybrid） |
110A AC / 140A PV |
120A AC / 150A PV (150A Max Hybrid) |
250A Max PV |
120A (PV+AC) |
160A (Ultra-Fast) |
|
|
Dual AC Output (Optional) |
240Vac (L1/L2 Split Phase) |
120Vac ± 5% |
120Vac |
120V/240V Split Phase |
Dual AC Output |
Dual AC Output |
